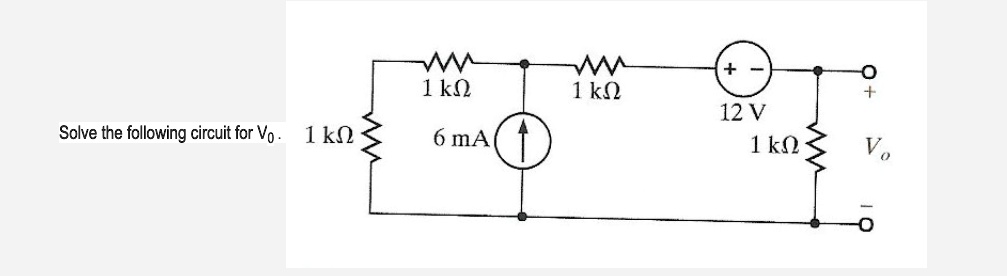

Solve the following circuit for $V_o$. 1 k$Omega$ 6 mA 1 k$Omega$ 1 k$Omega$ 12 V 1 k$Omega$ $V_o$
Added by Katherine A.
Close
Step 1
This is 6 mA so V0 = 6 mA. Show more…
