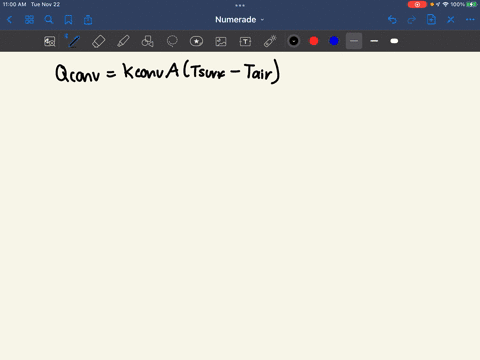

So we start from the general formula for the convection heart rate. So Q -convect equals K -conv

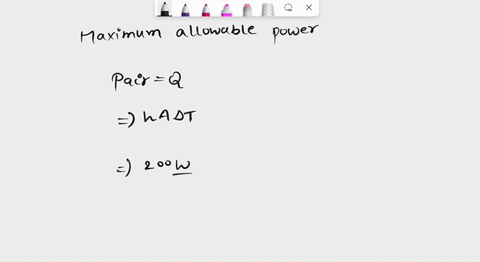

we will be calculating the maximum allowable power and maximum allowable power from here it can

So here in this fashion the maximum rate at which the heat can be dissipated in the chip when th

Here it is given that the value of Q1 minus Q2 minus Q3 is equal to the 0, where the value of P,

Question

Square integrated chips (ICs), 1 cm by 1 cm, mounted on a flat motherboard cannot have surface temperature exceeding 70Â°C. You may assume uniform surface temperature. If 33Â°C air blows over the motherboard at 10 m/s to cool the ICs, what is the maximum heat generation of the second IC, with a center-point 8 cm from the leading edge? [10] If for the same air speed, we use a device at the leading edge to guarantee a totally turbulent boundary layer, what is the second IC's maximum heat generation? [10] Table A: Thermophysical Properties of Gases at Atmospheric Pressure Temperature (K) (Â°C) (Kg/mÂ³) (kJ/kg-K) (mÂ²/s) (W/m-K) 100 -173.15 1.032 150 3364 1.012 200 -73.15 1.3947 250 1.1614 300 1.007 400 126.85 0.786 500 0.6964 600 326.85 1.019 700 1.014 800 1.011 900 626.85 0.9950 1000 0.8714

          Square integrated chips (ICs), 1 cm by 1 cm, mounted on a flat motherboard cannot have surface temperature exceeding 70Â°C. You may assume uniform surface temperature. If 33Â°C air blows over the motherboard at 10 m/s to cool the ICs, what is the maximum heat generation of the second IC, with a center-point 8 cm from the leading edge? [10]

If for the same air speed, we use a device at the leading edge to guarantee a totally turbulent boundary layer, what is the second IC's maximum heat generation? [10]

Table A: Thermophysical Properties of Gases at Atmospheric Pressure
Temperature (K) (Â°C) (Kg/mÂ³) (kJ/kg-K) (mÂ²/s) (W/m-K)
100  -173.15 1.032 150 3364 1.012
200  -73.15 1.3947 250 1.1614 300 1.007
400  126.85 0.786 500 0.6964
600  326.85 1.019 700 1.014 800 1.011
900  626.85 0.9950 1000 0.8714
