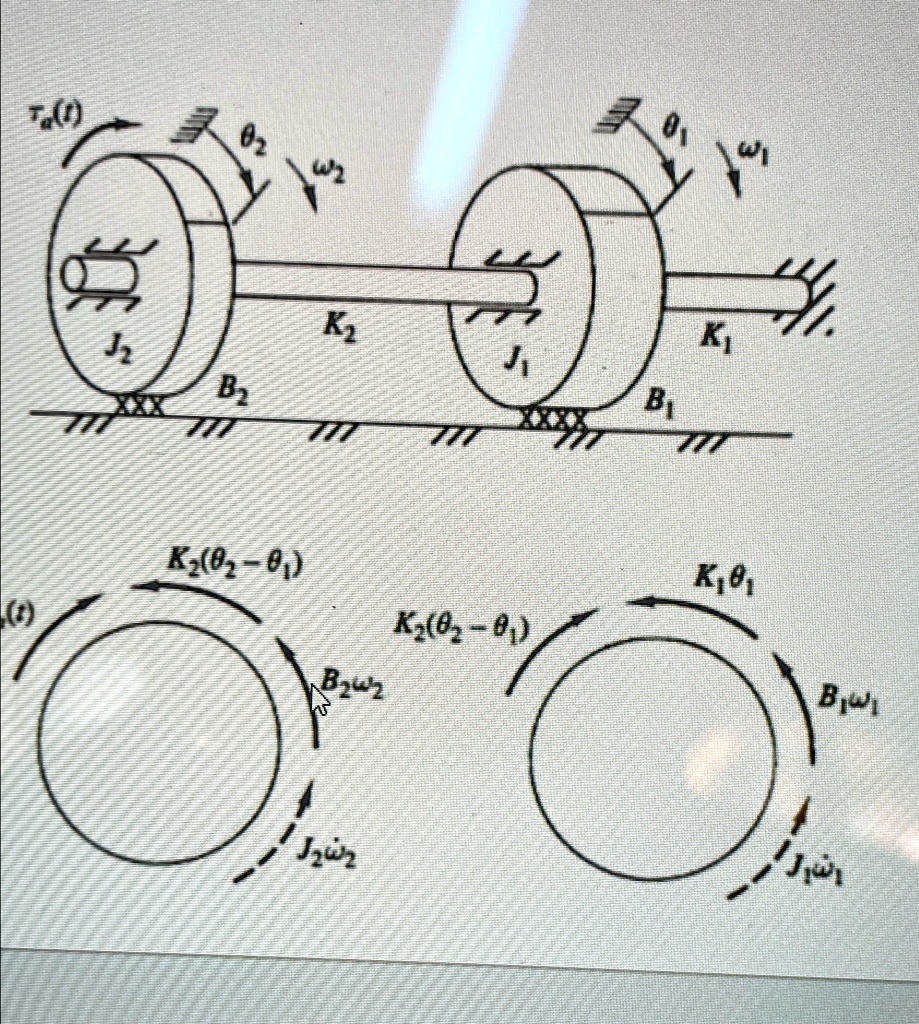

$\tau_a(t)$ \newline $\theta_2$ \newline $\omega_2$ \newline $J_2$ \newline $B_2$ \newline $K_2$ \newline $J_1$ \newline $B_1$ \newline $K_1$ \newline $\theta_1$ \newline $\omega_1$ \newline $K_2(\theta_2-\theta_1)$ \newline $B_2\omega_2$ \newline $J_2\omega_2$ \newline $K_1\theta_1$ \newline $B_1\omega_1$ \newline $J_1\omega_1$ \newline $K_2(\theta_2-\theta_1)$
Added by Alexandra S.
Close
Step 1
Step 1: Identify the variables in the system: - Ta(1) - W - K2 - K - B2 - B - K0 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 71 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Obtain the transfer function for the state-space representation of a system given by y(t)= [0 1 0] X1 X2 X3
Adi S.

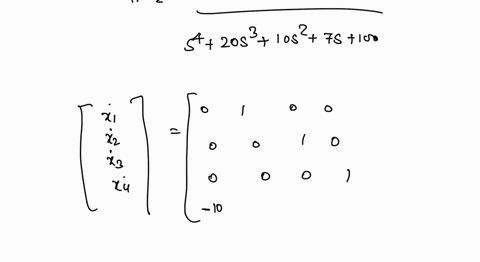

Question 1: Find state space model of the system: a. Using direct method. R(s) 100 C(s) s^4 + 20s^3 + 10s^2 + 7s + 100 b. Using cascade and parallel method. R(s) 30(s+1) C(s) s^3 + 10s^2 + 31s + 30
Sri K.

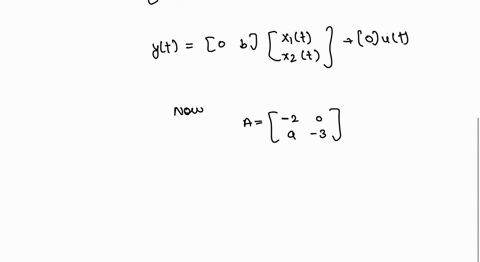

Problem 3. For a system, the state-space model is given by the following equations: ẋ₁(t) = -2x₁(t) + u(t) ẋ₂(t) = -3x₂(t) + ax₁(t) y(t) = bx₂(t) Determine the conditions for controllability and observability of the system.
