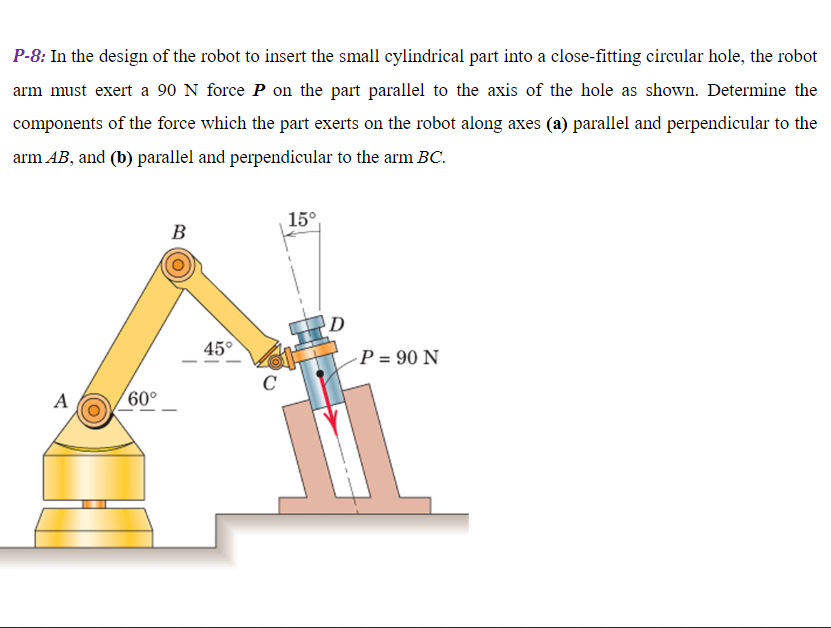

P-8: In the design of the robot to insert the small cylindrical part into a close-fitting circular hole, the robot arm must exert a \( 90 \mathrm{~N} \) force \( \boldsymbol{P} \) on the part parallel to the axis of the hole as shown. Determine the components of the force which the part exerts on the robot along axes (a) parallel and perpendicular to the \( \operatorname{arm} A B \), and (b) parallel and perpendicular to the \( \operatorname{arm} B C \).
Added by İlim G.
Close
Step 1
First, we need to find the angles between the force P and the arms AB and BC. Show more…
Show all steps
Your feedback will help us improve your experience
Shahab Ullah and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An industrial robot is being used to position a small part $P .$ Calculate the magnitude of the acceleration a of $P$ for the instant when $\beta=30^{\circ}$ if $\dot{\beta}=10 \mathrm{deg} / \mathrm{s}$ and $\ddot{\beta}=20 \mathrm{deg} / \mathrm{s}^{2}$ at this same instant. The base of the robot is revolving at the constant rate $\omega=40$ deg/s. During the motion arms $A O$ and $A P$ remain perpendicular.
The member $O A$ of the industrial robot telescopes and pivots about the fixed axis at point $O$. At the instant shown, $\theta=60^{\circ}, \dot{\theta}=1.2 \mathrm{rad} / \mathrm{s}, \ddot{\theta}=0.8$ $\operatorname{rad} / \mathrm{s}^{2}, \quad \overline{O A}=0.9 \mathrm{m}, \quad \dot{\overline{O A}}=0.5 \mathrm{m} / \mathrm{s},$ and $\overrightarrow{O A}=$ $-6 \mathrm{m} / \mathrm{s}^{2} .$ Determine the magnitudes of the velocity and acceleration of joint $A$ of the robot. Also, sketch the velocity and acceleration of $A$ and determine the angles which these vectors make with the positive $x$ -axis. The base of the robot does not revolve about a vertical axis.
The industrial robot is held in the stationary position shown. Draw the shear and moment diagrams of the arm $A B C$ if it is pin connected at $A$ and connected to a hydraulic cylinder (two-force member) $B D$. Assume the arm and grip have a uniform weight of $1.5 \mathrm{lb} / \mathrm{in}$. and support the load of $40 \mathrm{lb}$ at $C$.
