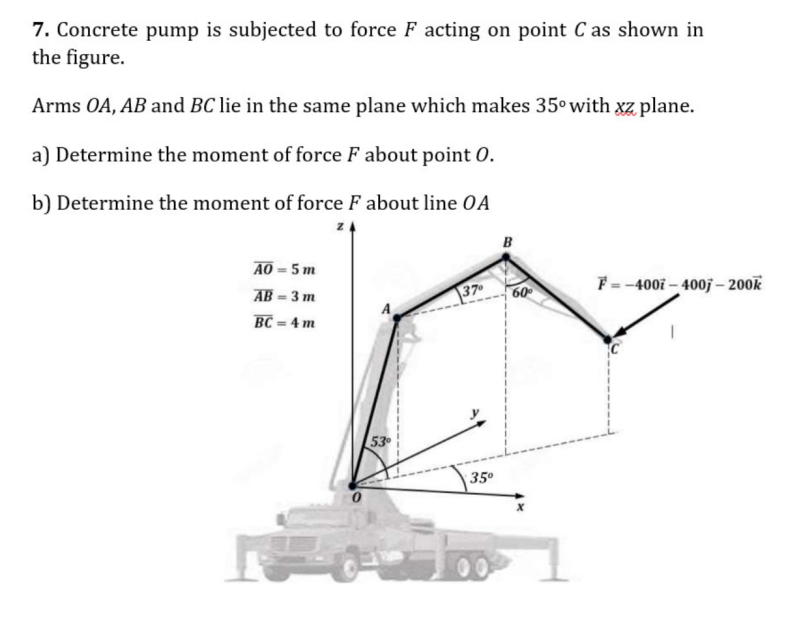

7. Concrete pump is subjected to force \( F \) acting on point \( C \) as shown in the figure. Arms \( O A, A B \) and \( B C \) lie in the same plane which makes \( 35^{\circ} \) with \( x z \) plane. a) Determine the moment of force \( F \) about point \( O \). b) Determine the moment of force \( F \) about line \( O A \)

          7. Concrete pump is subjected to force \( F \) acting on point \( C \) as shown in the figure.

Arms \( O A, A B \) and \( B C \) lie in the same plane which makes \( 35^{\circ} \) with \( x z \) plane.
a) Determine the moment of force \( F \) about point \( O \).
b) Determine the moment of force \( F \) about line \( O A \)

7. Concrete pump is subjected to force F acting on point C as shown in the figure.

Arms O A, A B and B C lie in the same plane which makes 35^∘ with x z plane.
a) Determine the moment of force F about point O.
b) Determine the moment of force F about line O A

Added by İlim G.

Engineering Mechanics: Statics and Dynamics

R. C. Hibbeler 14th Edition

Chapter 4

Instant Answer

Solved by Expert Shyam P

Step 1

We can do this by projecting the force vector onto each axis. Let Fx, Fy, and Fz be the components of F along the x, y, and z axes, respectively. Since the force F is acting in the plane that makes a 35° angle with the xz plane, we can find the components of F Show more…
