50 N 3N/m A 6 m C 6 m B 10 Nm Determine the displacement at point C and the slope at the support A of the beam EI constant. Use method of Superposition.
Added by Louis G.
Close
Step 1
To determine the displacement at point C, we need to consider the effects of each force acting on the beam separately and then add them up using the method of superposition. Force 1: 50 N Since the force is acting vertically downwards, it will cause a vertical Show more…
Show all steps
Your feedback will help us improve your experience
Dharmendra Maheshwari and 99 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

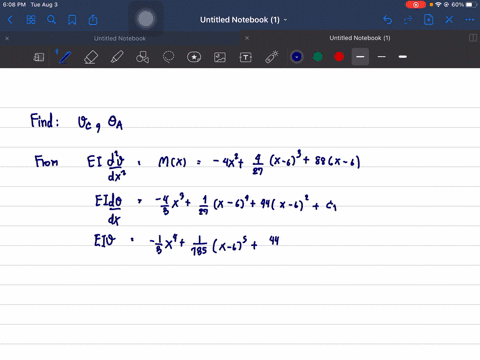

Determine the displacement $C$ and the slope at $A$ of the beam. $E I$ is constant.

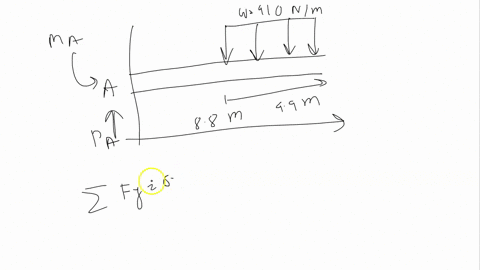

Meriam, Engineering Mechanics: Statics, 9e Chapter 5, Problem 5/085 Calculate the magnitudes of the supporting force RA and moment MA at A for the loaded cantilever beam. 570 N/m 3.4 m 5.6 m Answers:
