5. Calculate the force a punch press must exert if it is to punch out a large washer from a stri

Question

Sri K · Answer

here let&#x27;s look at the solution for the fourth one that is applied force F is equals to 17 ,500

Sri K · Answer

Hello, in this question, D equals 15 mm, D equals 22 mm, T equals 3 .5 mm, NT equals 220 mega pa

Supreeta N · Answer

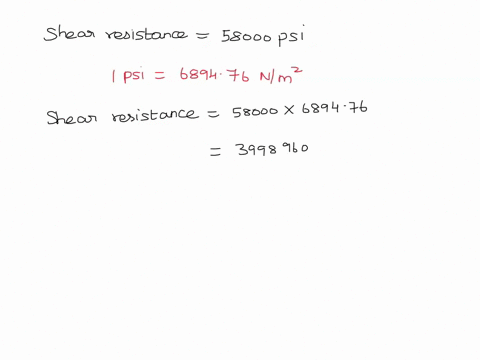

Hello students in this question shear resistance is given as 58 ,000 psi we know that 1 psi is e

Adi S · Answer

This is the given graph. So there is it is equals to 50. The height is 25, 25. The length of thi

Mahendra Kumar · Answer

In this question we have given the shear stress strain diagram for steel alloy and we have given

5. Calculate the force a punch press must exert if it is to punch out a large washer from a strip of 5-mm-thick sheet of steel with an ultimate shear strength of 375 MPa. The washer dimensions are as follows: hole diameter of 4 mm, and outside diameter of 9 mm. (Similar to textbook problem 9.38)
