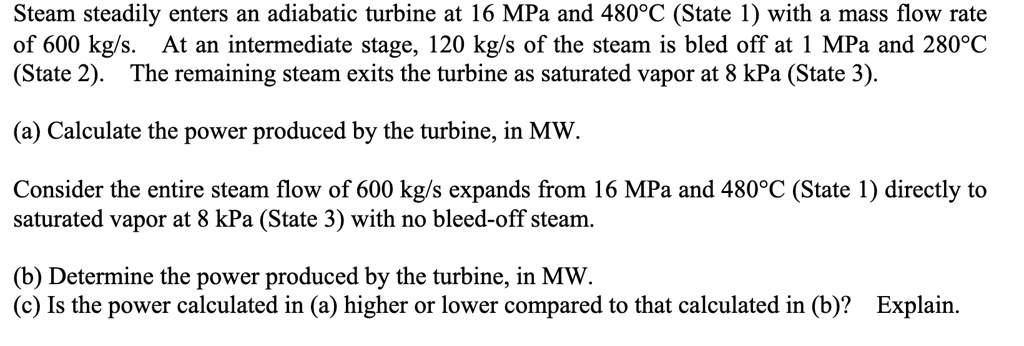

Steam steadily enters an adiabatic turbine at 16 MPa and 480°C (State 1) with a mass flow rate of 600 kg/s. At an intermediate stage, 120 kg/s of the steam is bled off at 1 MPa and 280°C (State 2). The remaining steam exits the turbine as saturated vapor at 8 kPa (State 3). (a) Calculate the power produced by the turbine, in MW. Consider the entire steam flow of 600 kg/s expands from 16 MPa and 480°C (State 1) directly to saturated vapor at 8 kPa (State 3) with no bleed-off steam. (b) Determine the power produced by the turbine, in MW. (c) Is the power calculated in (a) higher or lower compared to that calculated in (b)? Explain.
Added by Kenneth C.
Close
Step 1
(a) To calculate the power produced by the turbine when there is no bleed-off steam, we can use the steady flow energy equation: Power = (mass flow rate) * (specific enthalpy change) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 57 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

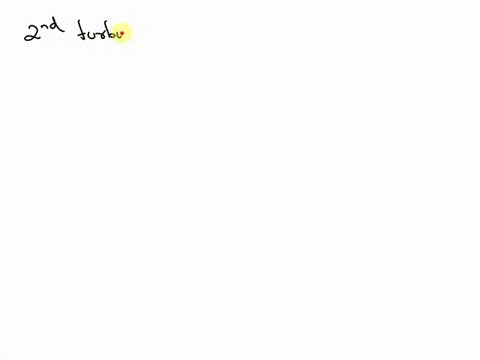

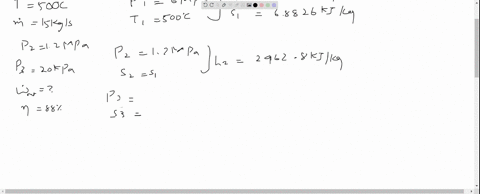

Steam at $6 \mathrm{MPa}$ and $500^{\circ} \mathrm{C}$ enters a two-stage adiabatic turbine at a rate of $15 \mathrm{~kg} / \mathrm{s}$. Ten percent of the steam is extracted at the end of the first stage at a pressure of $1.2 \mathrm{MPa}$ for other use. The remainder of the steam is further expanded in the second stage and leaves the turbine at $20 \mathrm{kPa}$. Determine the power output of the turbine, assuming $(a)$ the process is reversible and $(b)$ the turbine has an isentropic efficiency of 88 percent. Answers: (a) $16,290 \mathrm{~kW},$ (b) $14,335 \mathrm{~kW}$
Madhur L.

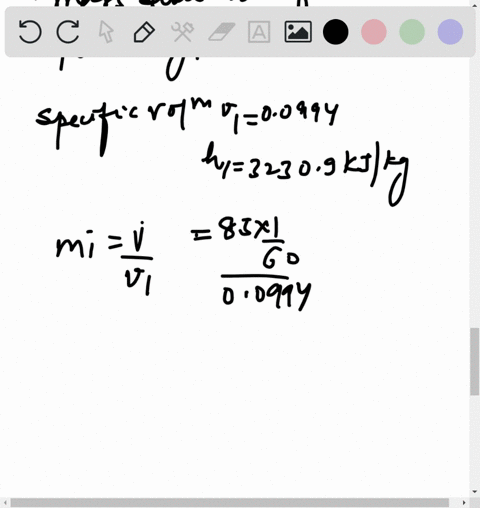

A well-insulated turbine operating at steady state is sketched in Fig. P4.29. Steam enters at $3 \mathrm{MPa}, 400^{\circ} \mathrm{C}$, with a volumetric flow rate of $85 \mathrm{~m}^{3} / \mathrm{min}$. Some steam is extracted from the turbine at a pressure of $0.5 \mathrm{MPa}$ and a temperature of $180^{\circ} \mathrm{C}$. The rest expands to a pressure of $6 \mathrm{kPa}$ and a quality of $90 \%$. The total power developed by the turbine is $11,400 \mathrm{~kW}$. Kinetic and potential energy effects can be neglected. Determine (a) the mass flow rate of the steam at each of the two exits, in $\mathrm{kg} / \mathrm{h}$. (b) the diameter, in $\mathrm{m}$, of the duct through which steam is extracted, if the velocity there is $20 \mathrm{~m} / \mathrm{s}$.
