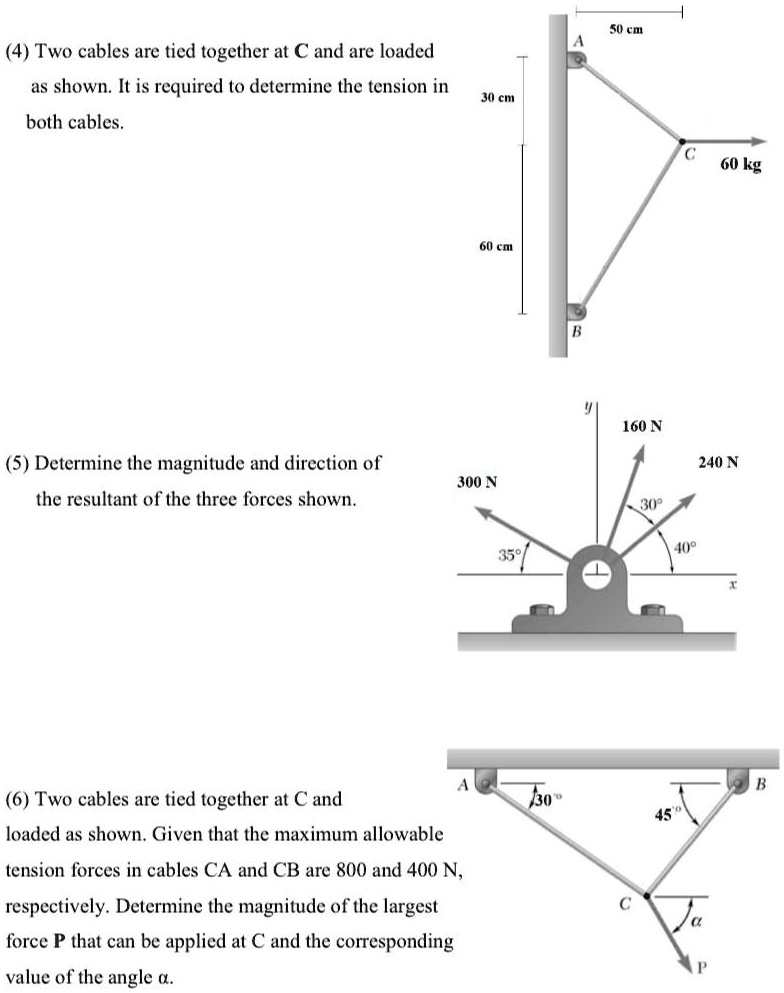

(4) Two cables are tied together at C and are loaded as shown. It is required to determine the tension in both cables. (5) Determine the magnitude and direction of the resultant of the three forces shown. (6) Two cables are tied together at C and loaded as shown. Given that the maximum allowable tension forces in cables CA and CB are 800 and 400 N, respectively. Determine the magnitude of the largest force P that can be applied at C and the corresponding value of the angle ??.
Added by Madison M.
Close
Step 1
The sum of the forces in the x and y directions should be equal to zero. Let's denote the tension in cable AC as T1 and in cable BC as T2. The angle between the horizontal line and cable AC is α, and the angle between the horizontal line and cable BC is β. From Show more…
Show all steps
Your feedback will help us improve your experience
Umar Sohail Qureshi and 96 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

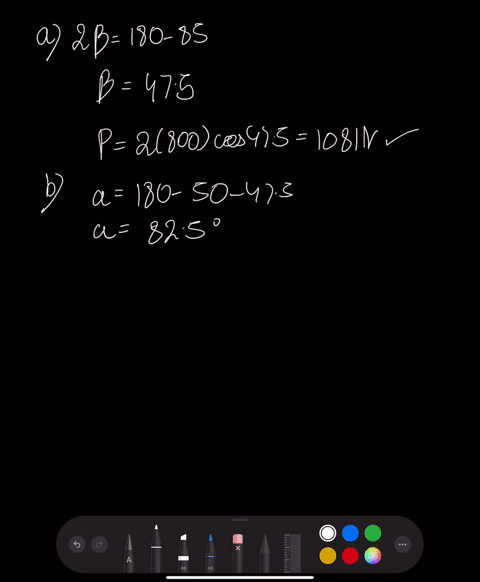

Two cables tied together at $C$ are loaded as shown. Knowing that the maximum allowable tension in each cable is $800 \mathrm{N}$, determine (a) the magnitude of the largest force $\mathbf{P}$ that can be applied at $C,(b)$ the cor responding value of $\alpha$ The end of the coaxial cable $A E$ is attached to the pole $A B$, which is strengthened by the guy wires $A C$ and $A D$. Knowing that the tension in wire $A C$ is 120 Ib, determine (a) the components of the force exerted by this wire on the pole, ( $b$ ) the angles $\theta_{\text {s. }}, \theta_{y},$ and $\theta$, that the force forms with the coordinate axes.
Dr. C D.

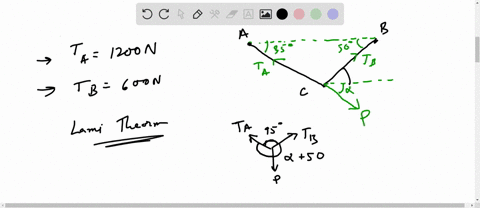

Two cables tied together at C are loaded as shown. We know that the maximum allowable tension is 1200 N in cable AC and 600 N in cable BC. If the maximum allowable tensions of the two cables are reached at the same time, determine (a) the magnitude of the largest force P that can be applied, (b) the corresponding value of θ.
Supratim P.
A $50-$ lb weight is hung by a cable so that the two portions of the cable make angles of $40^{\circ}$ and $53^{\circ},$ respectively, with the horizontal. Find the magnitudes of the forces of tension $\mathrm{T}_{1}$ and $\mathrm{T}_{2}$ in the cables if the resultant force acting on the object is zero. (Round to two decimal places.)
