Question

Suppose an AC generator with $V(t) = 150\sin100t$ Volts is connected to a series RLC circuit with $R = 40.0 \, \Omega$, $L = 80.0 \, mH$ and $C = 50.0 \, \mu F$ as shown in Figure. (a) Calculate $V_{R0}$, $V_{L0}$ and $V_{C0}$ (the maximum of the voltage drops across each circuit element). (b) Calculate the maximum potential difference across the inductor and the capacitor between points b and d shown in Figure.

Name: suppose an ac generator with vt 150sin100t volts is connected to a series rlc circuit with r 400 omega l 800 mh and c 500 mu f as shown in figure a calculate vr0 vl0 and vc0 the maximum o 44343
Uploaded: 2023-08-19T18:22:38-08:00
Duration: 2 min 20 s
Channel: Adi S
Description: suppose an ac generator with vt 150sin100t volts is connected to a series rlc circuit with r 400 omega l 800 mh and c 500 mu f as shown in figure a calculate vr0 vl0 and vc0 the maximum o 44343

          Suppose an AC generator with $V(t) = 150\sin100t$ Volts is connected to a series RLC circuit with $R = 40.0 \, \Omega$, $L = 80.0 \, mH$ and $C = 50.0 \, \mu F$ as shown in Figure.

(a) Calculate $V_{R0}$, $V_{L0}$ and $V_{C0}$ (the maximum of the voltage drops across each circuit element).

(b) Calculate the maximum potential difference across the inductor and the capacitor between points b and d shown in Figure.

suppose an ac generator with vt 150sin100t volts is connected to a series rlc circuit with r 400 omega l 800 mh and c 500 mu f as shown in figure a calculate vr0 vl0 and vc0 the maximum o 44343

Added by Tammy L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

08/19/2023

Step 1

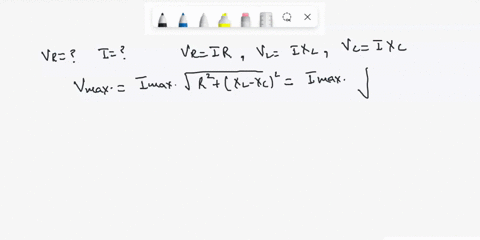

The impedance of the resistor is $Z_R = R = 40.0 \, \Omega$. The impedance of the inductor is $Z_L = j\omega L = j(100)(80.0 \times 10^{-3}) = j8 \, \Omega$. The impedance of the capacitor is $Z_C = \frac{1}{j\omega C} = \frac{1}{j(100)(50.0 \times 10^{-6})} = Show more…

Show all steps

Thanks for your feedback!

Suppose an AC generator with $V(t) = 150\sin100t$ Volts is connected to a series RLC circuit with $R = 40.0 \, \Omega$, $L = 80.0 \, mH$ and $C = 50.0 \, \mu F$ as shown in Figure. (a) Calculate $V_{R0}$, $V_{L0}$ and $V_{C0}$ (the maximum of the voltage drops across each circuit element). (b) Calculate the maximum potential difference across the inductor and the capacitor between points b and d shown in Figure.
