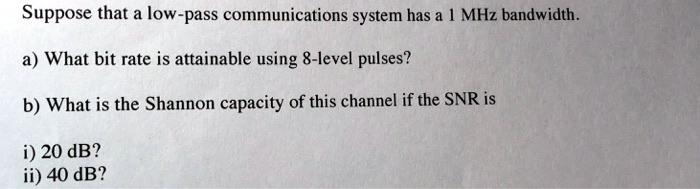

Suppose that a low-pass communications system has a 1 MHz bandwidth. a) What bit rate is attainable using 8-level pulses? b) What is the Shannon capacity of this channel if the SNR is i) 20 dB? ii) 40 dB?

          Suppose that a low-pass communications system has a 1 MHz bandwidth.
a) What bit rate is attainable using 8-level pulses?
b) What is the Shannon capacity of this channel if the SNR is
i) 20 dB?
ii) 40 dB?

Added by Joshua L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

08/29/2023

Step 1

- An 8-level pulse means each symbol can represent 3 bits (since \(2^3 = 8\)). - The bit rate \(R\) is given by the formula \(R = 2 \times B \times \log_2(M)\), where \(B\) is the bandwidth and \(M\) is the number of levels. - Here, \(B = 1 \text{ MHz}\) and \(M = Show more…
