Suppose the field inside a large piece of dielectric is E0, so that the electric displacement is D0=
Added by Krystal W.
Step 1
The electric displacement is given by the equation: \[ D = \varepsilon E \] where \( \varepsilon \) is the permittivity of the dielectric. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 68 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The electric field $\vec{E}_{0}$ in a spherical cavity in a uniform dielectric of permittivity $\varepsilon$ is related to the far away field $\vec{E}$, in the following manner. Imagine the cavity to be filled up with the dielectric. Then there will be a uniform field $E$ everywhere and a polarization $\overrightarrow{P,}$ given by, $\vec{P}=(\varepsilon-1) \varepsilon_{0} \vec{E}$ Now take out the sphere making the cavity, the electric field inside the sphere will be $-\frac{P}{3 \varepsilon_{0}}$ By superposition. $\overrightarrow{E_{0}}-\frac{\vec{P}}{3 \varepsilon_{0}}=\vec{E}$ or, $\overrightarrow{E_{0}}=\vec{E}+\frac{1}{3}(\varepsilon-1) \vec{E}=\frac{1}{3}(\varepsilon+2) \vec{E}$
Electrodynamics
Conductors and Dielectrics in an Electric Field

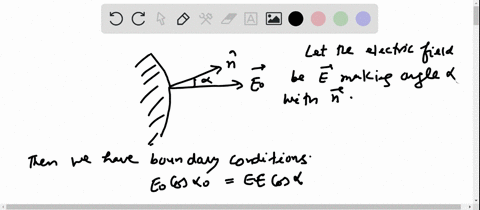

Let the field in the dielectric be $\vec{E}$ making an angle $\alpha$ with $\vec{n} .$ Then we have the boundary conditions, $E_{0} \cos \alpha_{0}=\varepsilon E \cos \alpha$ and $E_{0} \sin c_{0}=E \sin \alpha$ So $E=E_{0} \sqrt{\sin ^{2} \alpha_{0}+\frac{1}{\varepsilon^{2}} \cos ^{2} \alpha_{0}}$ and $\tan \alpha=\varepsilon \tan \alpha_{0}$ In the dielectric the normal component of the induction vector is $D_{n}=\varepsilon_{0} \varepsilon E_{n}=\varepsilon_{0} \varepsilon E \cos \alpha=\varepsilon_{0} E_{0} \cos \alpha_{0}$ $\sigma^{\prime}=P_{n}=D_{n}-\varepsilon_{0} E_{n}=\left(1-\frac{1}{\varepsilon}\right) \varepsilon_{0} E_{0} \cos \alpha_{0}$ or, $\quad \sigma^{\prime}=\frac{\varepsilon-1}{\varepsilon} \varepsilon_{0} E_{0} \cos \alpha_{0}$

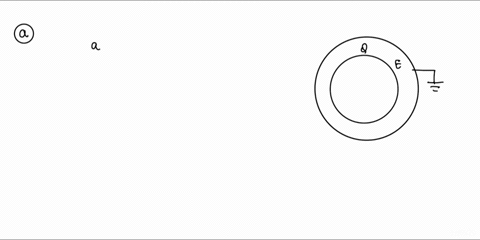

The volume between two concentric conducting spheres of radii a and b (a < b) is filled with an inhomogeneous dielectric constant where A is a constant and r is the radial component. ε = ε0 / (1 + Ar) A charge Q is placed on the inner surface while the outer surface is grounded. Find: - The electric displacement in the region between the spheres - The bound charge density in the region between the spheres - The bound surface charge density at r = a and r = b.
Adi S.
