Question

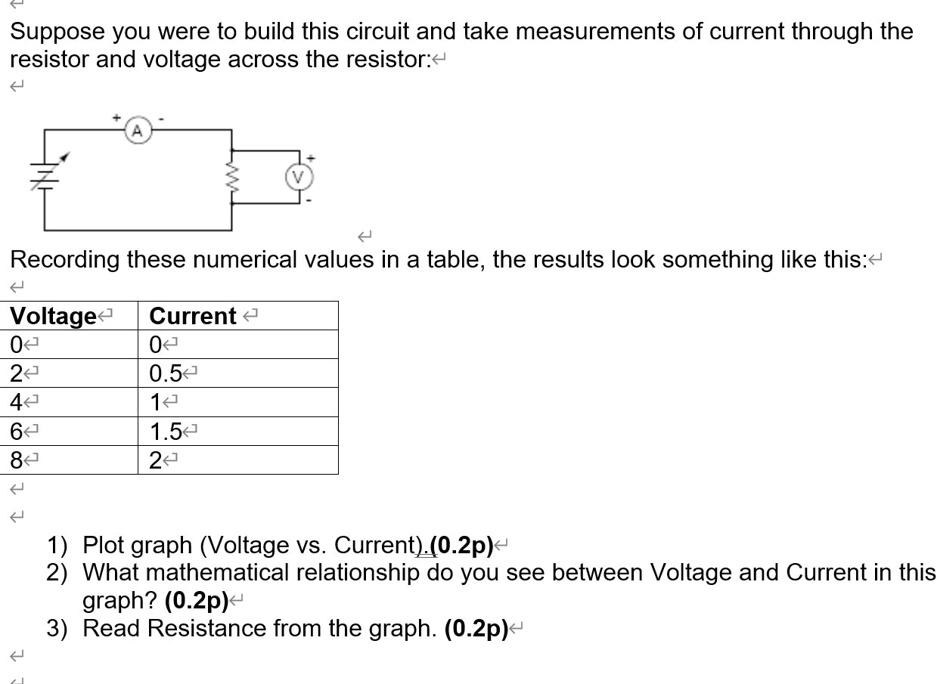

Suppose you were to build this circuit and take measurements of current through the resistor and voltage across the resistor: Recording these numerical values in a table, the results look something like this: Voltage Current 0 0 2 0.5 4 1 6 1.5 8 2 1) Plot graph (Voltage vs. Current). (0.2p) 2) What mathematical relationship do you see between Voltage and Current in this graph? (0.2p) 3) Read Resistance from the graph. (0.2p)

          Suppose you were to build this circuit and take measurements of current through the resistor and voltage across the resistor:

Recording these numerical values in a table, the results look something like this:

Voltage Current
0 0
2 0.5
4 1
6 1.5
8 2

1) Plot graph (Voltage vs. Current). (0.2p)
2) What mathematical relationship do you see between Voltage and Current in this graph? (0.2p)
3) Read Resistance from the graph. (0.2p)

Suppose you were to build this circuit and take measurements of current through the resistor and voltage across the resistor:

Recording these numerical values in a table, the results look something like this:

Voltage Current
0 0
2 0.5
4 1
6 1.5
8 2

1) Plot graph (Voltage vs. Current). (0.2p)
2) What mathematical relationship do you see between Voltage and Current in this graph? (0.2p)
3) Read Resistance from the graph. (0.2p)

Added by Josep E.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Meghan R

02/25/2022

Step 1

Current using the given values: - (24, 44) - (64, 8) - (4, 0.5) - (1.5, 1.5) ** Show more…

Show all steps

Thanks for your feedback!

Suppose you were to build this circuit and take measurements of current through the resistor and voltage across the resistor: Recording these numerical values in a table, the results look something like this: Voltage Current 0 0 2 0.5 4 1 6 1.5 8 2 1) Plot graph (Voltage vs. Current) (0.2p) 2) What mathematical relationship do you see between Voltage and Current in this graph? (0.2p) 3) Read Resistance from the graph. (0.2p)
