Question

360Vrms 60Hz 0° T1 000000, mmmmm 1:10 R1 22? Motor C1 22µF The load is an electrostatic motor which can be represented by a resistor and a capacitor. 0.18 Find the power factor of this load. Find a component type (capacitor or inductor) and its value, which when connected in parallel on the primary side of the transformer will correct for the load factor. Inductor 3.3mH

          360Vrms
60Hz
0°
T1
000000,
mmmmm
1:10
R1
22?
Motor
C1
22µF

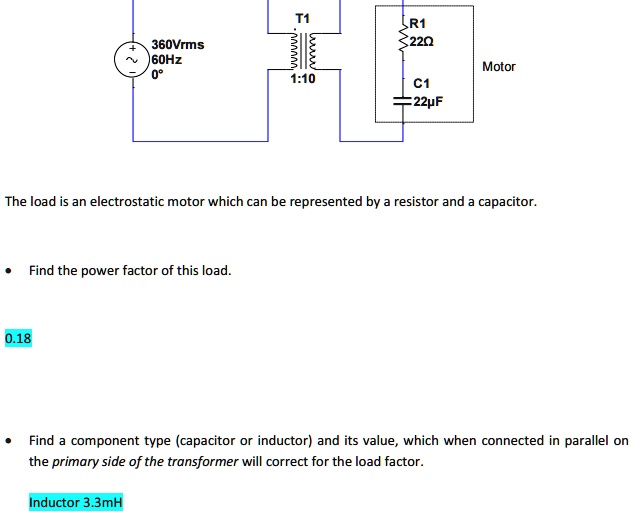

The load is an electrostatic motor which can be represented by a resistor and a capacitor.
0.18
Find the power factor of this load.
Find a component type (capacitor or inductor) and its value, which when connected in parallel on
the primary side of the transformer will correct for the load factor.
Inductor 3.3mH

360Vrms
60Hz
0°
T1
000000,
mmmmm
1:10
R1
22?
Motor
C1
22µF
The load is an electrostatic motor which can be represented by a resistor and a capacitor.
0.18
Find the power factor of this load.
Find a component type (capacitor or inductor) and its value, which when connected in parallel on
the primary side of the transformer will correct for the load factor.
Inductor 3.3mH

Added by Robert C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Cyra Jelle Calleja

Step 1

The power factor (PF) is defined as the cosine of the angle between the voltage and current waveforms in an AC circuit. It represents the efficiency of power transfer in the circuit. In this case, the power factor is given as 0.18. Show more…

Show all steps

Thanks for your feedback!

LR1 220 360 Vrms 60 Hz Motor 1:10 C1 22 F The load is an electrostatic motor which can be represented by a resistor and a capacitor. Find the power factor of this load. 0.18 Find a component type (capacitor or inductor) and its value, which when connected in parallel on the primary side of the transformer will correct for the power factor. Inductor 3.3 mH
