QUESTION 20 A belt drive system with a tension in the tight side equal to 987 N, the tension in the slack side is equal to 529 N of the belt. The larger pulley rotates at 312 rev/min with a diameter equal to 0.59 m. Compute the Power transmitted by the Belt drive system in (W)?
Added by Irene B.
Close
Step 1
To compute the power transmitted by the belt drive system, we need to know the torque and rotational speed of the system. Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

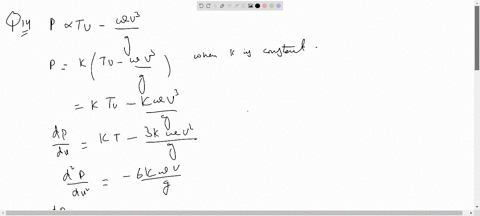

The power transmitted by a belt drive is proportional to $T v-\frac{w v}{g}$, where $v=$ speed of the belt, $T=$ tension on the driving side and $\omega=$ weight per unit length of belt. Find the speed at which the transmitted power is a maximum.
Differentiation applications
Further problems F.8
Sri K.

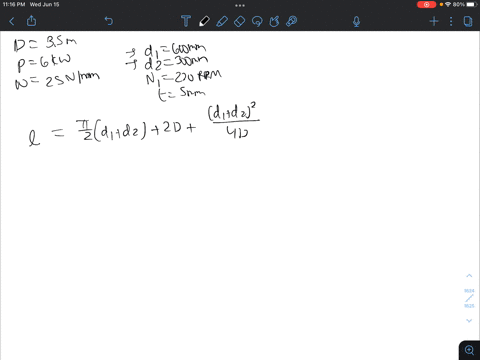

The power transmitted between two shafts 3.5 meters apart by a cross belt drive around the two pulleys 600 mm and 300 mm in diameter is 6 kW. The speed of the larger pulley (driver) is 220 rpm. The permissible load on the belt is 25 N/mm width of the belt, which is 5 mm thick. The coefficient of friction between the smaller pulley surface and the belt is 0.35. Determine: 1. the necessary length of the belt; 2. the width of the belt, and 3. the necessary initial tension in the belt. [Ans. 8.472 m; 53 mm; 888 N]
Penny R.
