Question

Take mass flow rate = 0.45 m/s Length (L) = 7 m H = W = 0.25 m Ti = 38°C; Ts = 20°C Warmed air at 1 atm and TC enters an L-m long rectangular duct with a cross-section of H x W (H = W). The duct is maintained at a constant surface temperature of TC, and the air mass flow rate is m kg/s. Determine: a. The heat transfer rate from the warmed air to the duct. b. The air outlet temperature.

          Take mass flow rate = 0.45 m/s
Length (L) = 7 m
H = W = 0.25 m
Ti = 38°C; Ts = 20°C

Warmed air at 1 atm and TC enters an L-m long rectangular duct with a cross-section of H x W (H = W). The duct is maintained at a constant surface temperature of TC, and the air mass flow rate is m kg/s. Determine:
a. The heat transfer rate from the warmed air to the duct.
b. The air outlet temperature.
Show more…
take mass flow rate 045 mslength l 7 mhw 025 mti 38c ts 20c warmed air at 1 atm and tc enters an l m long rectangular duct with a cross section of h x wh w the duct is maintained at a consta 57036

Added by Lori L.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Take mass flow rate = 0.45 m/s Length (L) = 7 m H = W = 0.25 m Ti = 38°C; Ts = 20°C Warmed air at 1 atm and TC enters an L-m long rectangular duct with a cross-section of H x W (H = W). The duct is maintained at a constant surface temperature of TC, and the air mass flow rate is m kg/s. Determine: a. The heat transfer rate from the warmed air to the duct. b. The air outlet temperature.
Close icon
Play audio
Feedback
Powered by NumerAI
Jennifer Stoner Ivan Kochetkov
Kathleen Carty verified

Chai Santi and 93 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
air-enters-a-frictionless-constant-area-duct-with-m_120-t_1300circ-mathrmr-and-p_170-psia-heat-trans

Air enters a frictionless, constant-area duct with $M_{1}=2.0, T_{1}=300^{\circ} \mathrm{R},$ and $p_{1}=70$ psia. Heat transfer occurs as the air travels down the duct. A converging section $\left(A_{2} / A_{3}=1.5\right)$ is placed at the end of the constant area duct and $M_{3}=1.0 .$ Assuming isentropic flow (aside from the heat transfer through the duct $),$ calculate the amount and direction of heat transfer.

Introduction to Fluid Mechanics

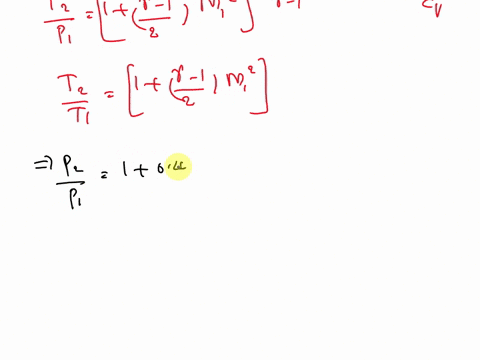

consider-air-entering-a-heated-duct-at-p1-1-atm-andt1-288-k-ignore-the-effect-of-friction-calculate-theamount-of-heat-per-unit-mass-in-joules-per-kilogram-necessary-tochoke-the-flow-at-the-e-66486
