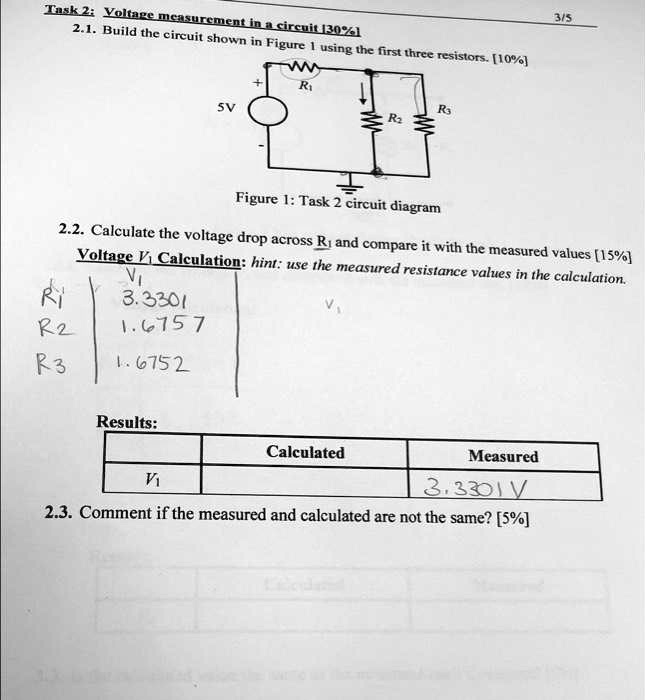

Task 2: Voltage measurement in a circuit
2.1. Build the circuit shown in Figure 1 using the first three resistors. [10%]
Figure 1: Task 2 circuit diagram
2.2. Calculate the voltage drop across R and compare it with the measured values. [15%]
Voltage (V) Calculation hint: Use the measured resistance values in the calculation.
V = R1 * I = 3.3301 * 1.6757 = 5.5797V
V = R2 * I = 1.6757 * 1.6757 = 2.8057V
V = R3 * I = 0.6752 * 1.6757 = 1.1312V
Results:
Calculated:
Measured V1 = 3.3301V
2.3. Comment if the measured and calculated values are not the same? [5%]
