00:01

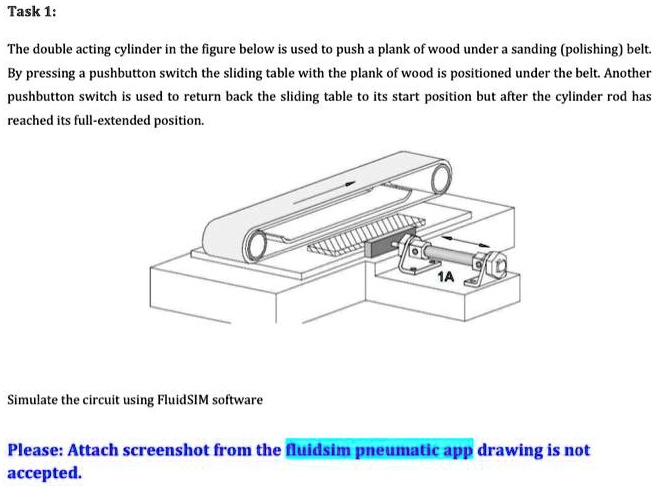

So here we have to draw the direct control circuit for the pneumatics.
00:09
So first of all let us draw the pneumatic circuit.
00:13
So that can be drawn like as per the given.
00:17
Obviously here it will be the shaft where the pressure have been applied and now this can be drawn like this.
00:26
Okay and here's the shaft and motor that we have to apply here.
00:32
Then it should be grounded like this.
00:35
Here it should be the cross one and these are nothing but the directions which have been gone.
00:39
So this is what for 1 by 2.
00:42
This is what for y.
00:46
So this we have drawn the pneumatic circuit.
00:51
Now we will draw the electric circuit without relay for the controlling axis.
00:57
So first of all we will take the dc line of 24 volt and obviously here we want to going to connect the switches without relay operation.
01:11
So here we will show the fan or you will say the rotor and this will be the line of ground that is 0 volt.
01:20
Similarly here will be one of the switch with the same shaft which we have to show by its rotor...
