1. The daily load curve of a power system is given by the...

1. The daily load curve of a power system is given by the following data. Time..................12 3 6 8 10 11 12 1 3 4 5 6 7 9 12 Load, kw x $10^{-3}$......95 60 60 150 175 180 175 150 200 250 310 170 140 160 105 Plot the load curve to scales of 1cm=2 hr, 1cm= 50,000 kw. Determine the load factor. What is the daily load factor of the standby equipment that takes all peak load over 200,000 kw?

Transcript

00:01 Hello students in this question.

00:02 We are given the data of time and the load of consumer 1 and consumer 2 to given information consumer 1 is connected to 65 kilowatt and consumer 2 is connected to 75 kilowatt.

00:20 The transformer capacity is equal to 160.

00:24 Kilo volt ampere power factor is equal to 0 .90.

00:30 So first we calculate the demand factor.

00:33 So demand factor is the ratio between the maximum demand of the system to the sum of individual maximum demands.

00:39 So for consumer 1 maximum demand will be equal to 30 kilowatt, right? that is the maximum time slot from 14 to 20 hour time slot for consumer 2 maximum demand is at 40 kilowatt from 18 to 20 hours load.

00:57 So demand factor will be equal to 30 plus 40 that is equal to 70 by 140.

01:03 So that is equal to 0 .5.

01:07 That is a demand factor.

01:08 Now b part.

01:10 This is daily energy daily energy is the total energy consumed by the combined consumers in a day.

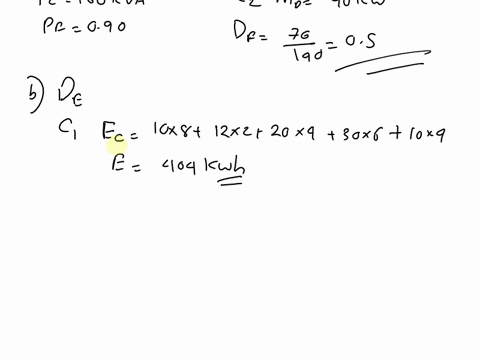

01:17 So for consumer 1 energy consumed is equal to 10 times 8 plus 12 times 2 plus 20 times 4 plus 30 times 6 plus 10 times 4.

01:33 So energy will be equal to the sum of all these things.

01:37 So that will give you 404 kilowatt hour now for consumer number 2.

01:44 So consumer number 2 energy consumed is equal to 15 times 5 plus 30 times 3 plus 20 times 10 plus 40 times 2 plus 10 times 4.

02:00 So the total energy consumed for consumer 1 this is for consumer 2.

02:05 It will be equal to 8485 kilowatt hour.

02:11 The total daily energy is equal to 444 not 4 plus 485 that is 889 kilowatt hour.

02:24 Now the c part the average load average load is the average power consumed by the combined consumers over a day.

02:32 So average load is equal to total daily energy divided by 24 that will give you 889 divided by 24 that will be equal to 37 .04 kilowatt...
