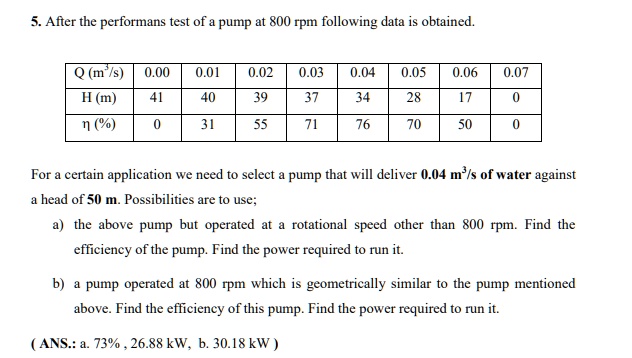

5. After the performans test of a pump at 800 rpm following data is obtained. | Q (m³/s) | 0.00 | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 | | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | | H (m) | 41 | 40 | 39 | 37 | 34 | 28 | 17 | 0 | | ? (%) | 0 | 31 | 55 | 71 | 76 | 70 | 50 | 0 | For a certain application we need to select a pump that will deliver 0.04 m³/s of water against a head of 50 m. Possibilities are to use; a) the above pump but operated at a rotational speed other than 800 rpm. Find the efficiency of the pump. Find the power required to run it. b) a pump operated at 800 rpm which is geometrically similar to the pump mentioned above. Find the efficiency of this pump. Find the power required to run it. ( ANS.: a. 73% , 26.88 kW, b. 30.18 kW )
Added by Julie G.
Close
Step 1
The data includes flow rate (Q), head (H), and efficiency (η) at various flow rates. Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 64 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A centrifugal pump impeller whose external and internal diameters are 400 mm and 200 mm respectively is running at 950 r.p.m. The rate of flow through the pump is 0.035 m3/s. The suction and delivery heads are 5 m and 25 m respectively. The diameters of the suction and delivery pipe are 120 mm and 80 mm respectively. If the outlet vane angle is 45°, the flow velocity is constant and equal to 1.8 m/s and power required to drive the pump is 15 kW, determine: (i) Inlet vane angle, (ii) The overall efficiency, and (iii) The manometric efficiency. [Ans. (i) 10.26°; (ii) 61.76 % ; (iii) 73.65 %]
Sri K.
6. A motor is used to drive a pump having an efficiency of 85% and 70% respectively. What is the combined efficiency of the pump and motor? 7. In a boiler feed pump, the enthalpy at the entrance is 765 kJ/kg. If the pump has a head of 900 m, what is the exit enthalpy of the pump? 8. A submersible pump delivers 350 gpm of water to a height of 5 ft from the ground. The pump was installed 120 ft below the ground level and drawdown of 8 ft during the operation. If the water is 25 ft above the pump, determine the pump power. 9. Determine the number of stages needed for a centrifugal pump if it is used to deliver 400 gal/min of water and pump power of 15 hp. Each impeller develops a head of 38 ft. 10. A boiler feed pump receives 50 liters/second of water with a specific volume of 0.00112 m/kg at a head of 750 m. What is the power output of the driving motor if the pump efficiency is 65%? 11. What power can a boiler feed pump deliver to a mass of 35 kg/s water at a head of 500 m?
Madhur L.
