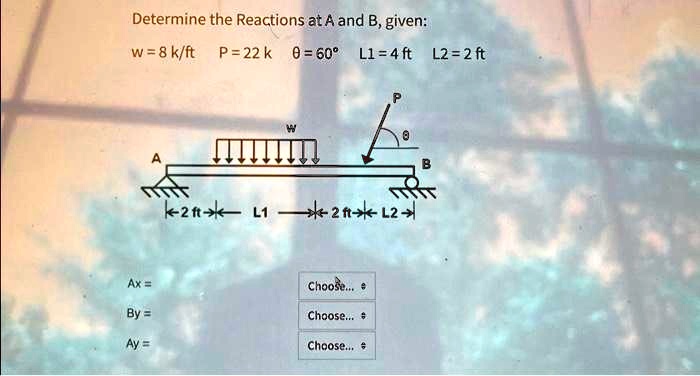

Determine the Reactions at A and B, given: w=8 k/ft P=22 k ?=60° L1=4 ft L2 = 2 ft Ax = Choose... By = Choose... Ay = Choose...
Added by Pamela G.
Close
Step 1
We have a beam supported at points A and B. The beam is subjected to a uniform distributed load (W) of 8 k/ft over its entire length, and a point load (P) of 22 k located at a distance of 4 ft from the left end (L1 = 4ft). The total length of the beam (0) is 60 Show more…
Show all steps
Your feedback will help us improve your experience
Dharmendra Maheshwari and 99 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem 2. Determine the reactions at A and E. 100 lb/ft 3 ft 2 ft 4 ft 600 lb-ft 3 ft
Adi S.

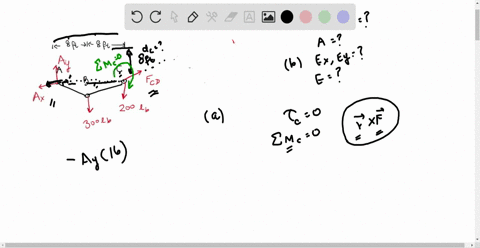

If $d_{C}=8$ ft, determine $(a)$ the reaction at $A,(b)$ the reaction at $E$
Umar Sohail Q.
Determine reactions at C (pin) and in member AB.
Madhur L.
