Question

Part A Determine the moment produced by force \(\mathbf{F} = \{-10\mathbf{i} + 9\mathbf{j} + 5\mathbf{k}\}\) N about the diagonal OD of the rectangular block (Figure 1). Enter the \(x\), \(y\), and \(z\) components of the moment separated by commas. \(M_{OD,x}, M_{OD,y}, M_{OD,z} = 0.54, 0.54, 0.27\) N\(\cdot\)m

          Part A
Determine the moment produced by force \(\mathbf{F} = \{-10\mathbf{i} + 9\mathbf{j} + 5\mathbf{k}\}\) N about the diagonal OD of the
rectangular block (Figure 1).
Enter the \(x\), \(y\), and \(z\) components of the moment separated by commas.
\(M_{OD,x}, M_{OD,y}, M_{OD,z} = 0.54, 0.54, 0.27\) N\(\cdot\)m

Part A
Determine the moment produced by force 𝐅 = {-10𝐢 + 9𝐣 + 5𝐤} N about the diagonal OD of the
rectangular block (Figure 1).
Enter the x, y, and z components of the moment separated by commas.
MOD,x, MOD,y, MOD,z = 0.54, 0.54, 0.27 N·m

Added by Stephanie H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

09/12/2023

Step 1

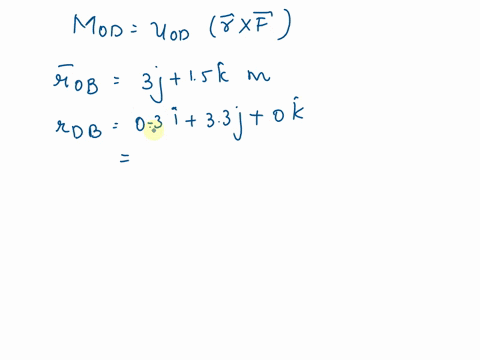

The moment arm vector is the vector from the point of rotation (O) to the line of action of the force (D). In this case, the line of action of the force is the diagonal OD of the rectangular block. To find the moment arm vector, we need to find the position Show more…

Show all steps

Thanks for your feedback!

Texts: Part A Determine the moment produced by force F = {10i + 9j + 5k} N about the diagonal OD of the rectangular block (Figure 1). Enter the x, y, and z components of the moment separated by commas. Answer: Mx = 0.54 N.m My = 0.54 N.m Mz = 0.27 N.m Submit Previous Answers Request Answer Figure 1 of 1 Incorrect; Try Again; 5 attempts remaining Provide Feedback 0.5 m 3 m 3 m
