Q2 (2.5) In the figure below. (a) Draw time domain plot of VEMF (b) Draw direction of increasing B ($dB/dt>0$) and direction of induced flux ($B_{ind}$) (c) Draw direction of Induced current and polarity of EMF
Added by Jesus C.
Close
Step 1
VEMF stands for "voltage of the electromotive force," which is the voltage induced in a coil due to a changing magnetic field. In this case, the figure provided is not given, so we cannot determine the specific shape of the time domain plot. However, we can assume Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 57 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
1.4. The long straight wire in the figure carries a current I that is decreasing with time at a constant rate. The circular loops A and B all lie in a plane containing the wire. The induced emf in each of the loops A and B is such that A) no emf is induced in any of the loops. B) a counterclockwise emf is induced in all the loops. C) loop A has a clockwise emf, loop B has no induced emf. D) loop A has a counter-clockwise emf, loop B has no induced emf. E) loop A has a counterclockwise emf, loops B has a clockwise emf.
Madhur L.

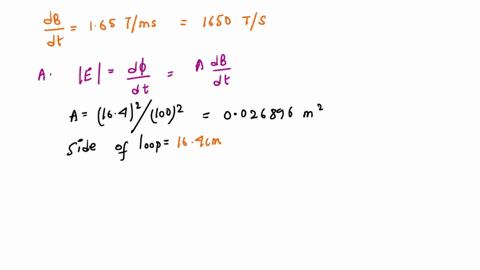

40. A spatially uniform magnetic field points in the +z--direction and is increasing in strength at the rate of 1.65 T/ms. Find the (a) the induced emf and (b) the current in a square conducting loop 16.4 cm on a side lying in the x - y plane, with resistance 19.3̩. (c) Is the current clockwise or counterclockwise when the loop is viewed looking down on the x - y plane?
Sparsha S.

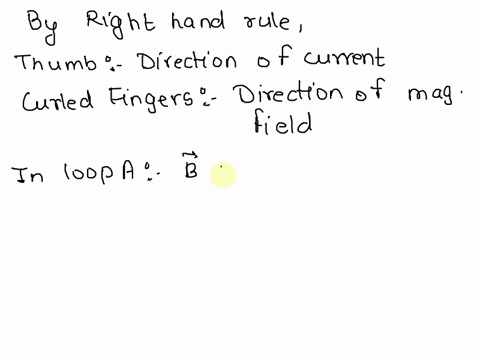

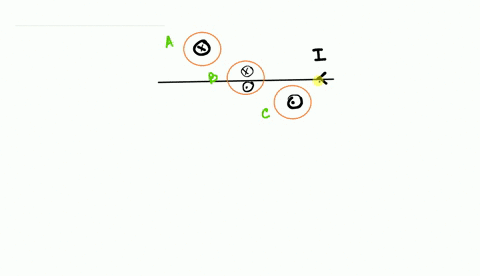

The long straight wire in the figure carries a current I that is decreasing with time at a constant rate. The circular loops A, B, and C all lie in a plane containing the wire. The induced emf in each of the loops A, B, and C is such that: a) no emf is induced in any of the loops b) a counterclockwise emf is induced in all the loops c) loop A has a clockwise emf, loop B has no induced emf, and loop C has a counterclockwise emf. d) loop A has a counter-clockwise emf, loop B has no induced emf, and loop C has a clockwise emf. e) loop A has a counter-clockwise emf, loops B and C have clockwise emfs.
Suman K.
