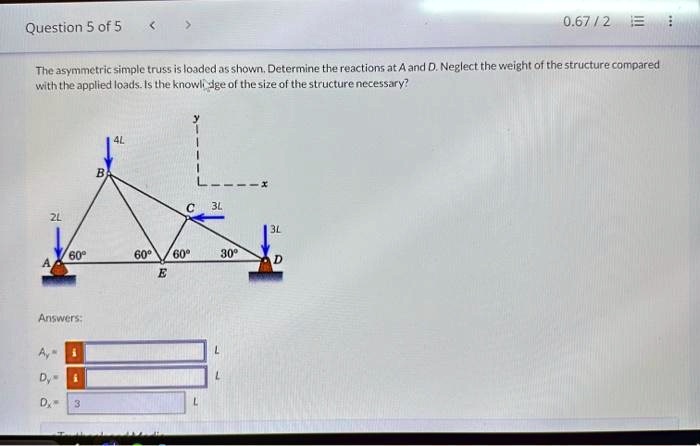

Question 5 of 5 The asymmetric simple truss is loaded as shown. Determine the reactions at A and D. Neglect the weight of the structure compared with the applied loads. Is the knowledge of the size of the structure necessary? 4L B C 3L 2L 3L 60° 60° A 60° E 30° D Answers: $A_y = $ L $D_y = $ L $D_x = $ L

          Question 5 of 5
The asymmetric simple truss is loaded as shown. Determine the reactions at A and D. Neglect the weight of the structure compared
with the applied loads. Is the knowledge of the size of the structure necessary?
4L
B
C
3L
2L
3L
60°
60°
A
60°
E
30°
D
Answers:
$A_y = $
L
$D_y = $
L
$D_x = $
L

Question 5 of 5
The asymmetric simple truss is loaded as shown. Determine the reactions at A and D. Neglect the weight of the structure compared
with the applied loads. Is the knowledge of the size of the structure necessary?
4L
B
C
3L
2L
3L
60°
60°
A
60°
E
30°
D
Answers:
Ay =
L
Dy =
L
Dx =
L
