tge impedance ZL in the circuit is adjusted for maximum average power transfer to ZL. the internal impedance of the sinusoidal voltage source is 4+j7 ohms. what is the maximum average power to ZL.? PzL max = ?
Added by Sirisha
Step 1
This means that ZL should be 4-j7 ohms. Second, the maximum power transfer theorem states that the maximum average power transferred to the load is given by the square of the magnitude of the voltage source divided by four times the magnitude of the source Show more…
Show all steps
Your feedback will help us improve your experience
Kenny Mesadieu and 61 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

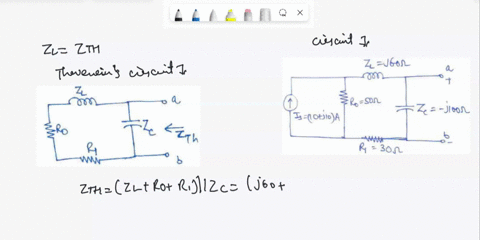

Problem 4 (20 Points): Phasors. The circuit in the figure represents a source. The frequency is 1000 rad/s. Find: - The value of the load impedance that maximizes power transfer. - The value of the average power P on the load impedance.
Adi S.

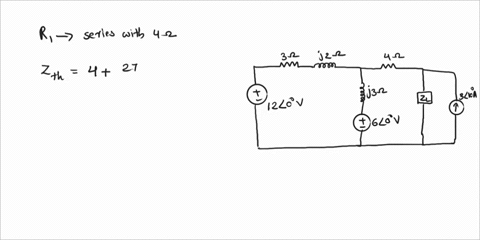

Calculate the value of $\mathbf{Z}_{L}$ in the circuit of Fig. 11.47 in order for $\mathbf{Z}_{L}$ to receive maximum average power What is the maximum average power received by $\mathbf{Z} ?$
