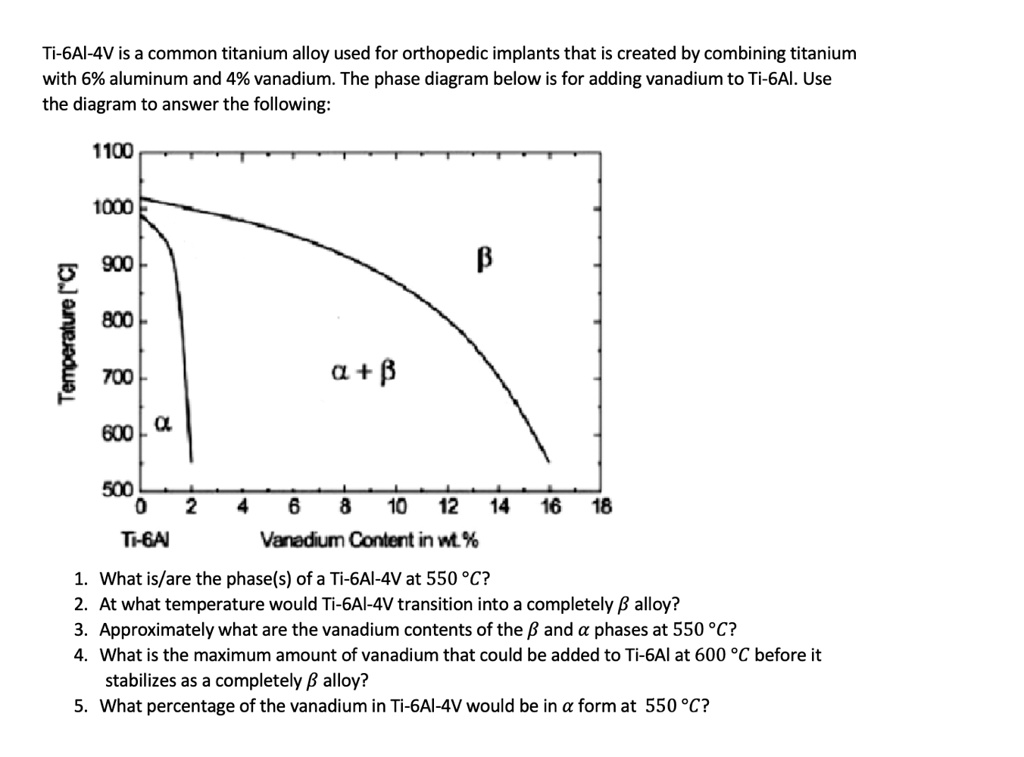

Ti-6Al-4V is a common titanium alloy used for orthopedic implants that is created by combining titanium with 6% aluminum and 4% vanadium. The phase diagram below is for adding vanadium to Ti-6Al. Use the diagram to answer the following: 1100 1000 Temperature [°C] 900 800 $\beta$ 700 $\alpha + \beta$ 600 $\alpha$ 500 0 2 4 6 8 10 12 14 16 18 Ti-6Al Vanadium Content in wt.% 1. What is/are the phase(s) of a Ti-6Al-4V at 550 °C? 2. At what temperature would Ti-6Al-4V transition into a completely $\beta$ alloy? 3. Approximately what are the vanadium contents of the $\beta$ and $\alpha$ phases at 550 °C? 4. What is the maximum amount of vanadium that could be added to Ti-6Al at 600 °C before it stabilizes as a completely $\beta$ alloy? 5. What percentage of the vanadium in Ti-6Al-4V would be in $\alpha$ form at 550 °C?

          Ti-6Al-4V is a common titanium alloy used for orthopedic implants that is created by combining titanium
with 6% aluminum and 4% vanadium. The phase diagram below is for adding vanadium to Ti-6Al. Use
the diagram to answer the following:
1100
1000
Temperature [°C]
900
800
$\beta$
700
$\alpha + \beta$
600 $\alpha$
500
0 2 4 6 8 10 12 14 16 18
Ti-6Al
Vanadium Content in wt.%
1. What is/are the phase(s) of a Ti-6Al-4V at 550 °C?
2. At what temperature would Ti-6Al-4V transition into a completely $\beta$ alloy?
3. Approximately what are the vanadium contents of the $\beta$ and $\alpha$ phases at 550 °C?
4. What is the maximum amount of vanadium that could be added to Ti-6Al at 600 °C before it
stabilizes as a completely $\beta$ alloy?
5. What percentage of the vanadium in Ti-6Al-4V would be in $\alpha$ form at 550 °C?

Ti-6Al-4V is a common titanium alloy used for orthopedic implants that is created by combining titanium
with 6% aluminum and 4% vanadium. The phase diagram below is for adding vanadium to Ti-6Al. Use
the diagram to answer the following:
1100
1000
Temperature [°C]
900
800
β
700
α + β
600 α
500
0 2 4 6 8 10 12 14 16 18
Ti-6Al
Vanadium Content in wt.%
1. What is/are the phase(s) of a Ti-6Al-4V at 550 °C?
2. At what temperature would Ti-6Al-4V transition into a completely β alloy?
3. Approximately what are the vanadium contents of the β and α phases at 550 °C?
4. What is the maximum amount of vanadium that could be added to Ti-6Al at 600 °C before it
stabilizes as a completely β alloy?
5. What percentage of the vanadium in Ti-6Al-4V would be in α form at 550 °C?
