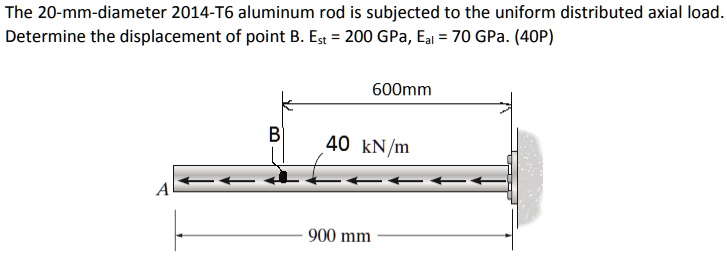

The 20-mm-diameter 2014-T6 aluminum rod is subjected to the uniform distributed axial load. Determine the displacement of point B. Est = 200 GPa, Eal = 70 GPa. (40P)
Added by Hannah R.
Close
Step 1
01 m Area, A = πr^2 = π(0.01)^2 = 3.14 x 10^-4 m^2 Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The 25-mm-diameter 2014-T6 aluminum rod is subjected to a uniform distributed axial load. Take E = 73.1 GPa (Figure 1). Pan A: Determine the displacement of the end. Express your answer to three significant figures and include the appropriate units. Figure 1: 30 kN/m 900 mm
Shaiju T.
A single axial load of magnitude P = 58 kN is applied at end C of the brass rod ABC. Knowing that E = 105 GPa, determine the diameter d of portion BC for which the deflection elongation in this case at point C will be 3 mm.
Adi S.
The aluminum rod is fixed at its base free at its top. If the length of the rod is $L=2 \mathrm{m},$ Determine the greatest allowable load $P$ that can be applied so that the rod does not buckle or yield. Also, determine the largest sidesway deflection of the rod due to the loading. $E_{\mathrm{al}}=$ $72 \mathrm{GPa}, \sigma_{Y}=410 \mathrm{MPa}$
