Question

The 495-kg uniform I-beam supports the load shown. Determine the reactions at the supports. 7.7 m 2.3 m 345 kg Answers: Ax = 0 N Ay = N By = N

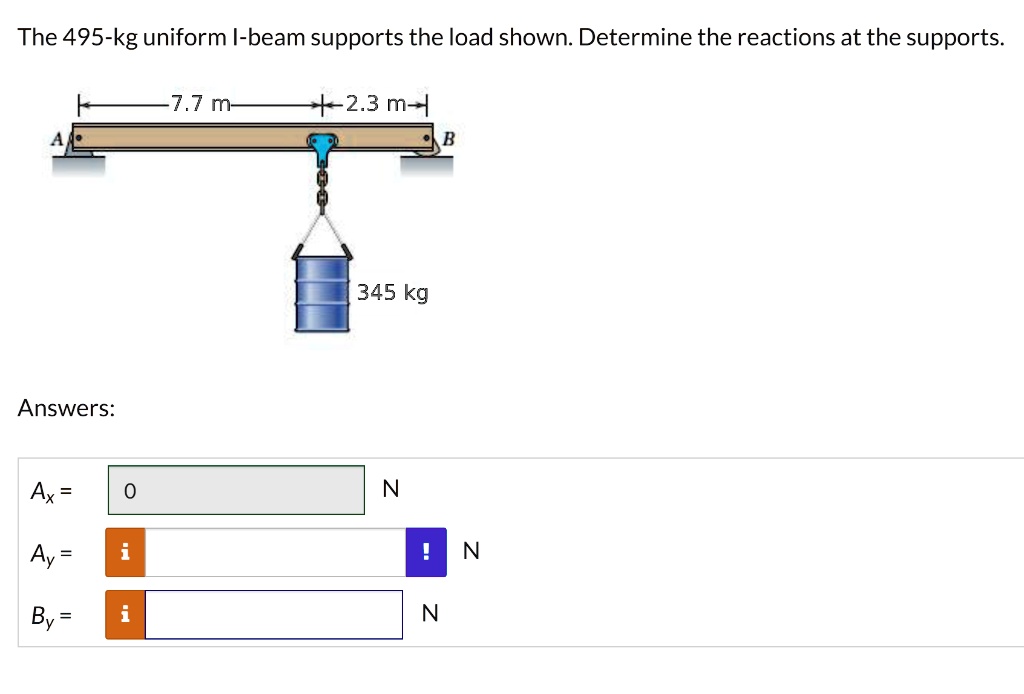

          The 495-kg uniform I-beam supports the load shown. Determine the reactions at the supports.
7.7 m
2.3 m
345 kg
Answers:
Ax = 0 N
Ay = N
By = N

Added by Manuela H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

09/15/2023

Step 1

First, we need to find the total weight of the I-beam and the load. The weight of the I-beam is 495 kg, and the weight of the load is 345 kg. We need to convert these weights to forces by multiplying by the acceleration due to gravity (9.81 m/s²). Weight of Show more…

Show all steps
