The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the rod is $80 \mathrm{mm}^{2},$ determine the displacement of $B$ and $A .$ Neglect the size of the couplings at $B$ and $C$
Added by Marvin M.
Step 1
The load at B is 40 kN and the load at C is 60 kN. Therefore, the total load on the rod is 100 kN. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the rod is 80 mm2, determine the displacement of B and A. Neglect the size of the couplings at B and C.
Adi S.
The composite shaft, consisting of aluminum, copper and steel sections, is subjected to the loading shown. Determine the displacement of $B$ with respect to $C .$ The cross-sectional area and modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at $B$ and $C$

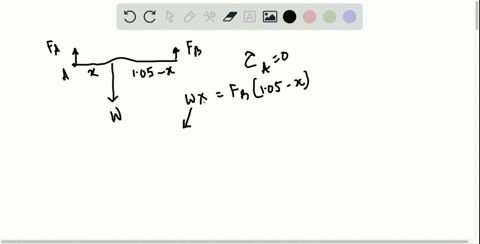

$\mathrm{A} 1.05-\mathrm{m}-\operatorname{lon} \mathrm{g}$ rod of negligible weight is supported at its ends by wires $A$ and $B$ of equal length (Fig. P11.91). The cross-sectional area of $A$ is 2.00 $\mathrm{mm}^{2}$ and that of $B$ is 4.00 $\mathrm{mm}^{2} .$ Young's modulus for wire $A$ is $1.80 \times 10^{11} \mathrm{Pa}$ ; that for $B$ is $1.20 \times 10^{11} \mathrm{Pa}$ . At what poing the rod should a weight $w$ be suspended to produce (a) equal stresses in $A$ and $B$ and (b) equal strains in $A$ and $B ?$
