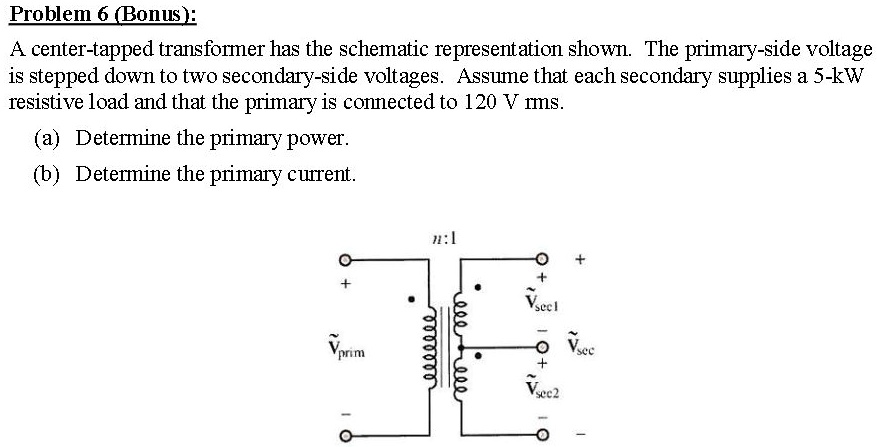

Problem 6 (Bonus): A center-tapped transformer has the schematic representation shown. The primary-side voltage is stepped down to two secondary-side voltages. Assume that each secondary supplies a 5-kW resistive load and that the primary is connected to 120 V rms. (a) Determine the primary power. (b) Determine the primary current.
Added by Lisa B.
Close
Step 1
(a) The primary power is 10 kW. Show more…
