The attached block diagram represents a feedback-feedforward control system. How would you expect the feed forward controller effect on the stability of the overall control system?

          The attached block diagram represents a feedback-feedforward control system. How would
you expect the feed forward controller effect on the stability of the overall control system?

Added by Norma R.

Chemistry: Structure and Properties

Nivaldo Tro 2nd Edition

Instant Answer

Solved by Expert Derrick Danso

Step 1

Here's how to analyze the situation: ### Show more…

Show all steps

Thanks for your feedback!

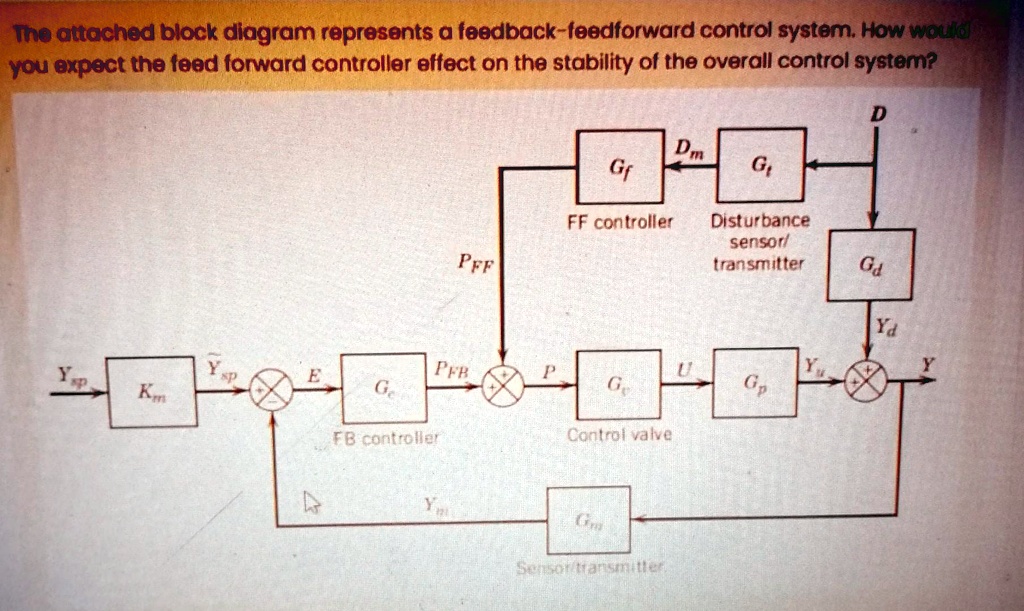

The attached block diagram represents a feedback-feedforward control system. How would you expect the feedforward controller to affect the stability of the overall control system? D Dm Gf G FF controller Disturbance sensor/transmitter PFF Gd YsP Km PFB E G G EB controller Control valve Y Gra Sensor/transmitter
