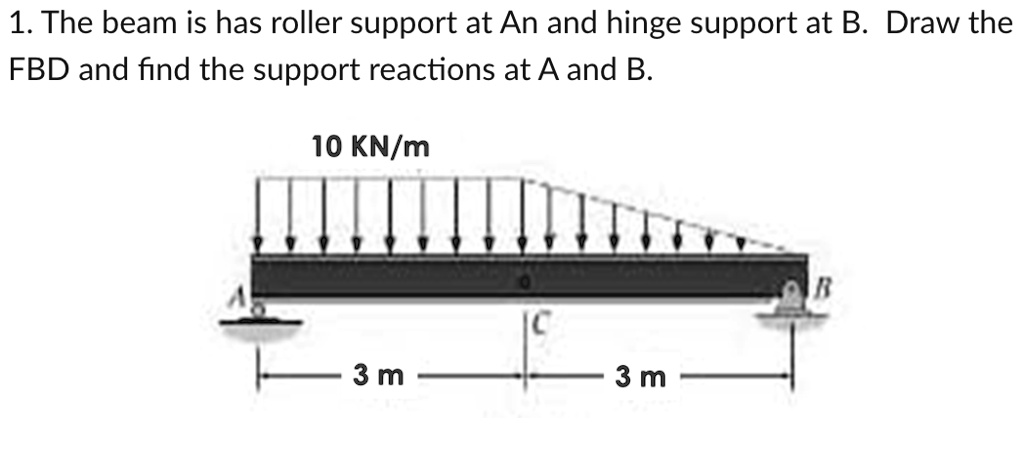

1. The beam is has roller support at An and hinge support at B. Draw the FBD and find the support reactions at A and B. 10 KN/m C 3 m 3 m
Added by David I.
Close
Step 1
The total load on the beam is therefore 10 KN/m * 6 m = 60 KN. This load is distributed evenly across the beam, so the line of action passes through the midpoint of the beam, which is 3 m from either end. The beam is supported at points A and B. At A, there is a Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 95 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The truss shown below is supported by a hinge support at A and a roller support at E. Determine: a) the reactions at A and E, b) the force in each truss member.
Sri K.
Determine the support reactions for the following beam subject to the loadings as shown in Fig. Q3b. A is a hinged support while C and D are roller supports. B is an internal hinge. 200 kN 1.5 m 1.5 m 60 kN/m 3 m 3 m 8 m Fig. Q3b (15 marks)
Rahul K.

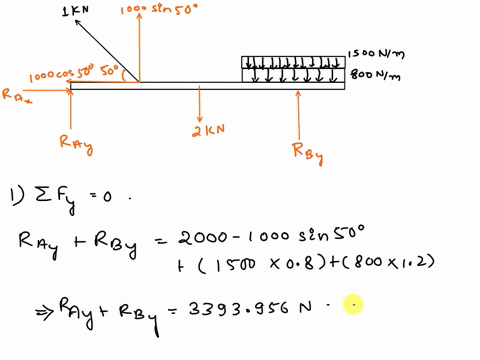

A uniform beam of weight 2kN has forces and uniformly distributed loads acting on it as shown. It is supported by a fixed hinge support at A and a roller (sliding support) support at point B. The longer distributed load has a value of 800 N/m and the shorter has a value of 1,5kN/m. Determine the magnitudes of the reactions at supports A and B
