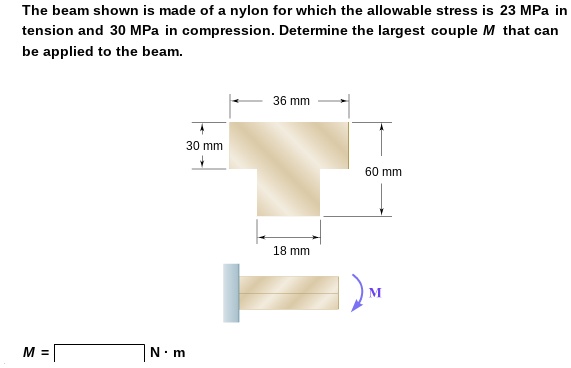

The beam shown is made of a nylon for which the allowable stress is 23 MPa in tension and 30 MPa in compression. Determine the largest couple M that can be applied to the beam. 36 mm 30 mm 60 mm 18 mm M M = N · m
Added by Trevor E.
Close
Step 1
Step 1: Calculate the distance from the bottom of the beam to the centroid: Distance = (18 * 30 * 30) / (2 + 36 * 30) = 35 mm Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The beam shown is made of nylon, for which the allowable stress is 24 MPa in tension and 31 MPa in compression. Determine the largest couple M that can be applied to the beam. (Round the final answer to one decimal place.)
Madhur L.
Knowing that for the extruded beam shown the allowable stress is 12 ksi in tension and 16 ksi in compression, determine the largest couple $\mathbf{M}$ that can be applied.
Averell H.

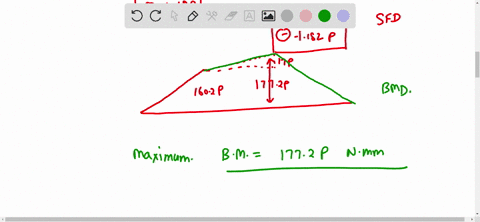

Two vertical forces are applied to a simply supported beam having cross section as shown in Fig. 3. If the maximum tensile and compressive stresses in the beam not to exceed 100 MPa, Determine maximum magnitude of force P the beam can carry. (R is your Roll No.)
Arjun C.
