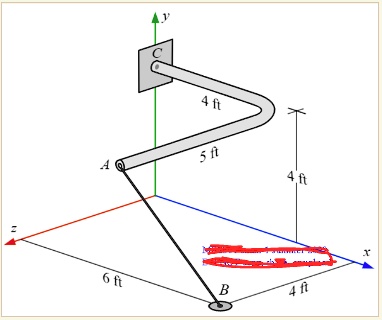

The bent bar shown is held in a horizontal plane by a fixed connection at†C†while cable†AB†exerts an††515.0†lb†force on point†A.
Part A: Find the reaction force†at point C†in cartesian vector required to hold the bar in this position under this condition
(-224.8 i + 112.4 j - 449.5 k) lb
(112.4 i + -224.8 j +449.5 k) lb
(-224.8 i + 449.5 j + 112.4 k) lb
Part B: Find concentrated moment†M†with components†about point C, that are required to hold the bar in this position under this condition.
(-2248 i -1573 j + 1798 k) lb.ft
(-1573 i -2248 j + 1798 k) lb.ft
(-1573 i + 1798 j -2248 k) lb.ft
4 ft
5 ft
4 ft
x
6 ft
4 ft
