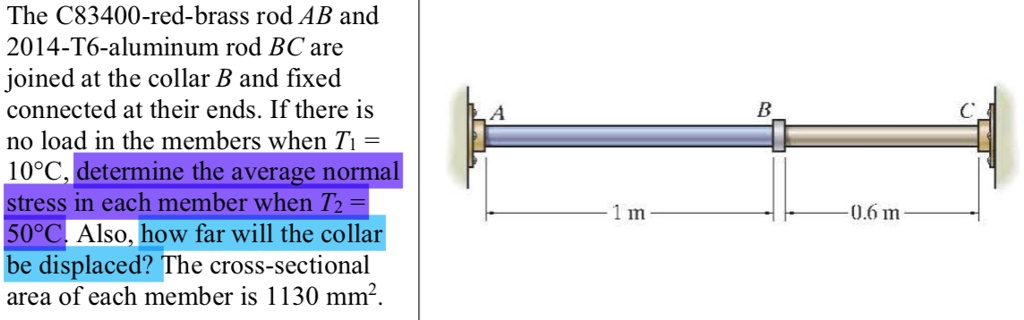

The C83400-red-brass rod AB and 2014-T6-aluminum rod BC are joined at the collar B and fixed connected at their ends. If there is no load in the members when T1 = 10°C, determine the average normal stress in each member when T2 = 50°C. Also, how far will the collar be displaced? The cross-sectional area of each member is 1130 mm².
Added by Brian R.
Close
Step 1
- The initial temperature (Ti) is 108°C. - The final temperature (Tz) is 50°C. - The cross-sectional area (A) of each member is 1130 mm². - The materials are C83400 red-brass for rod AB and 2014-T6 aluminum for rod BC. - The temperature change (ΔT) is Tz - Ti = Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 68 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The assembly consists of two red brass $C 83400$ copper rods $A B$ and $C D$ having a diameter of $30 \mathrm{mm},$ a 304 stainless steel rod $E F$ having a diameter of $40 \mathrm{mm}$ and a rigid member $G .$ If the supports at $A, C$ and $F$ each have a stiffness of $k=200 \mathrm{MN} / \mathrm{m}$, determine the average normal stress developed in the rods when the load is applied.
Madhur L.

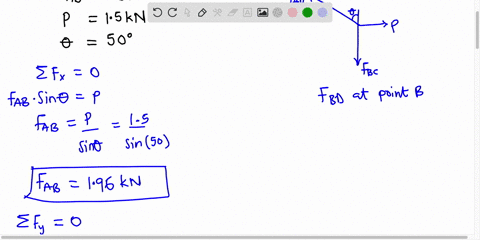

'Rods AB and BC each have a diameter of 5 mm If the load of P = 1.5 kN is applied to the ring, determine the average normal stress in each rod if 0 = 509 . Figure Q1'
