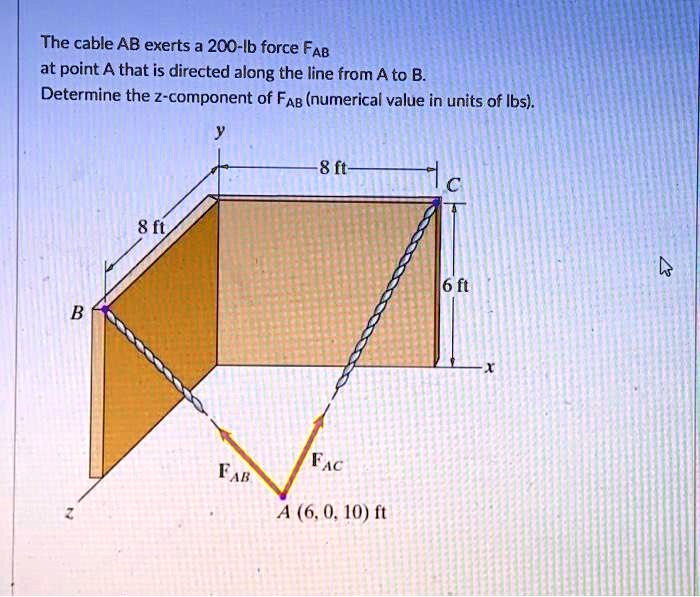

The cable AB exerts a 200-lb force $F_{AB}$ at point A that is directed along the line from A to B. Determine the z-component of $F_{AB}$ (numerical value in units of lbs).
Added by Yolanda J.
Close
Step 1
8 ft 8 ft 6 ft B AC FAB A (6, 0.10 ft) Show more…
Show all steps
Your feedback will help us improve your experience
Animesh Raj and 83 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

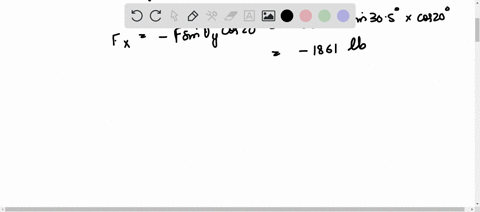

PROBLEM 2.75 Cable AB is 65 ft long, and the tension in that cable is 3900 lb. Determine (a) the x, y, and z components of the force exerted by the cable on the anchor B, (b) the angles , ? x , ? y and ? z defining the direction of that force.
Animesh R.
PROBLEM 2.77 Cable AB is 65 ft long, and the tension in that cable is 3900 lb. Determine (a) the x, y, and z components of the force exerted by the cable on the anchor B, (b) the angles θx, θy, and θz defining the direction of that force.
Supreeta N.

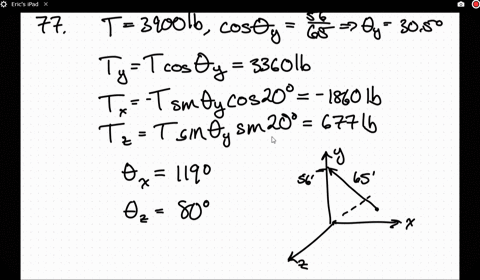

Cable $A B$ is $65 \mathrm{ft}$ long, and the tension in that cable is $3900 \mathrm{lb}$. Determine (a) the $x, y,$ and $z$ components of the force exerted by the cable on the anchor $B,(b)$ the angles $\theta_{x}, \theta_{y, \text { and }} \theta_{z}$ defining the direction of that force.
