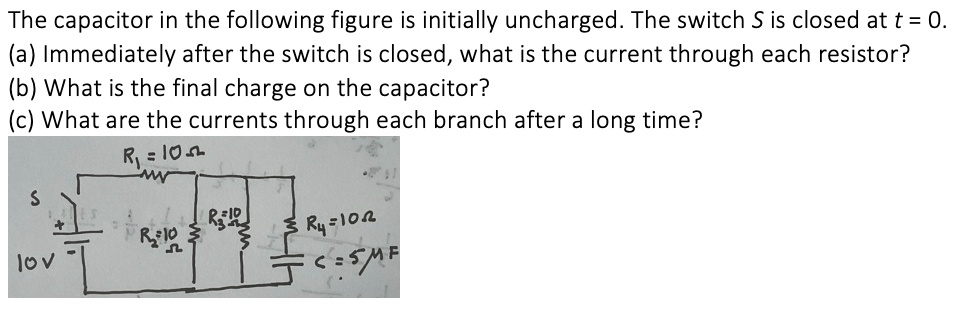

The capacitor in the following figure is initially uncharged. The switch S is closed at t = 0. (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor? (c) What are the currents through each branch after a long time? R_1=10? R_2=10? R_3=10? R_4=10? C=5?F 10V

Name: The capacitor in the following figure is initially uncharged. The switch S is closed at t = 0. (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor? (c) What are the currents through each branch after a long time? R1=10? R2=10? R3=10? R4=10? C=5?F 10V
Uploaded: 2022-07-04T06:24:27-08:00
Duration: 3 min 44 s
Channel: Suman K
Description: The capacitor in the following figure is initially uncharged. The switch S is closed at t = 0. (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor? (c) What are the currents through each branch after a long time? R1=10? R2=10? R3=10? R4=10? C=5?F 10V

          The capacitor in the following figure is initially uncharged. The switch S is closed at t = 0. (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor? (c) What are the currents through each branch after a long time? R_1=10? R_2=10? R_3=10? R_4=10? C=5?F 10V

The capacitor in the following figure is initially uncharged. The switch S is closed at t = 0. (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor? (c) What are the currents through each branch after a long time? R1=10? R2=10? R3=10? R4=10? C=5?F 10V

Added by Ashley J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

07/04/2022

Step 1

The total current supplied by the battery is 0.75 A. Therefore, - Current through R1 (Ir1) = 0.75 A - Current through R2 (Ir2) = 0.25 A - Current through R3 (Ir3) = 0.25 A - Current through R4 (Ir4) = 0.25 A Show more…
