5. Two steel channels are used as a column which is 35 feet long. The channels are back to back with a 6" spacing. The column is pin connected at its ends in both directions. Determine the buckling load if a) they are not connected together b) they are latticed together as shown. A plate connects the channels together at the top and bottom for each case.
Added by Sharon E.
Close
Step 1
The buckling load can be calculated using Euler's formula: Pcr = π²EI / (KL)² where: Pcr = critical load (buckling load) E = modulus of elasticity I = moment of inertia K = effective length factor (1.0 for pin-pin connection) L = length of the column The moment Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

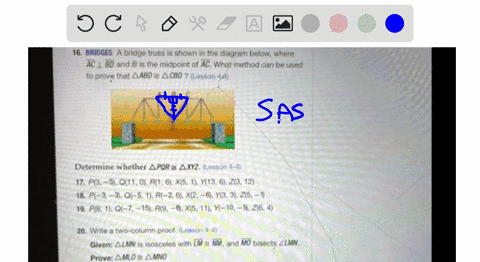

16. BRIDGES A bridge truss is shown in the diagram below, where AC ∥ BD and B is the midpoint of AC. What method can be used to prove that ∆ABD ≅ ∆CBD? Determine whether ∆PQR ≅ ∆XYZ. 17. P(3, −5), Q(11, 0), R(1, 6), X(5, 1), Y(13, 6), Z(3, 12) 18. P(−3, −3), Q(−5, 1), R(−2, 6), X(2, −6), Y(3, 3), Z(5, −1) 19. P(8, 1), Q(−7, −15), R(9, −8), X(5, 11), Y(−10, −5), Z(6, 4) 20. Write a two-column proof. Given: ∆LMN is isosceles with LM ≅ NM, and MO bisects ∠LMN. Prove: ∆MLO ≅ ∆MNO
James K.

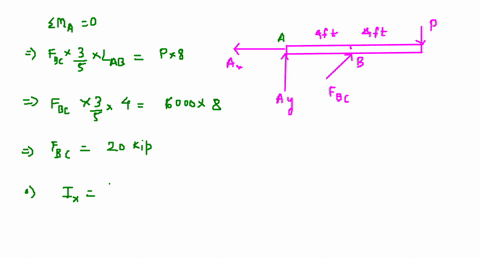

The beam supports the load of $P=6$ kip.As a result. the $\mathrm{A} 992$ steel member $B C$ is subjected to a compressive load. Due to the forked ends on the member, consider the supports at $B$ and $C$ to act as pins for $x-x$ axis buckling and as fixed supports for $y-y$ axis buckling. Determine the factor of safety with respect to buckling about each of these axes.

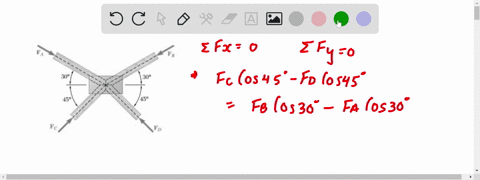

Four wooden members are joined with metal plate connectors and are in static equilibrium (not moving) under the action of the four forces shown. If FA = 2.3 kN and FB = 2.1 kN, determine the magnitudes of FC and FD. Two cables are tied together at C and are loaded as shown.
