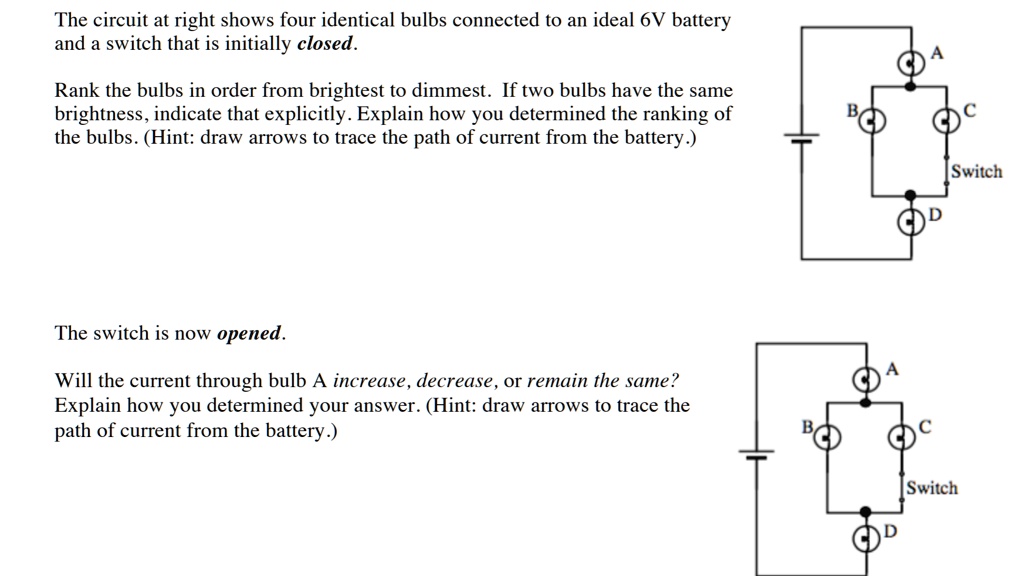

The circuit at right shows four identical bulbs connected to an ideal 6V battery and a switch that is initially closed. Rank the bulbs in order from brightest to dimmest. If two bulbs have the same brightness, indicate that explicitly. Explain how you determined the ranking of the bulbs. (Hint: draw arrows to trace the path of current from the battery.) The switch is now opened. Will the current through bulb A increase, decrease, or remain the same? Explain how you determined your answer. (Hint: draw arrows to trace the path of current from the battery.)
Added by Shirley R.
Close
Step 1
The current through bulb A will Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For each of the following questions, show your work and clearly explain your reasoning. 1) In the three circuits shown, the batteries and the bulbs are identical. Assume the batteries are ideal. Circuit 1 Circuit 2 Circuit 3 a) Rank the brightness of each of the bulbs, A – E. Explain how you determined your answer. 2) The circuit at the right contains an ideal battery, identical bulbs and a switch. a) With the switch open, rank the brightness of the bulbs, from brightest to dimmest. Explain. b) After the switch is closed will the current through bulb D increase, decrease or remain the same? Explain. c) Describe what happens to the brightness of bulb C, from the initial time with the switch open to after the switch closes.
Madhu K.

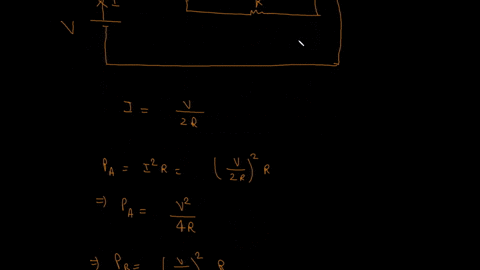

The illustration above shows a battery connected to three identical light bulbs and a switch (S). When the switch is open, only bulbs A and B are in the circuit. When the switch is closed, all three bulbs are in the circuit. What happens to the brightness of bulbs A and B when the switch is closed? bulb A stays the same, B dims bulb A gets brighter, B dims bulbs A and B get brighter bulbs A and B dim bulbs A and B remain the same
