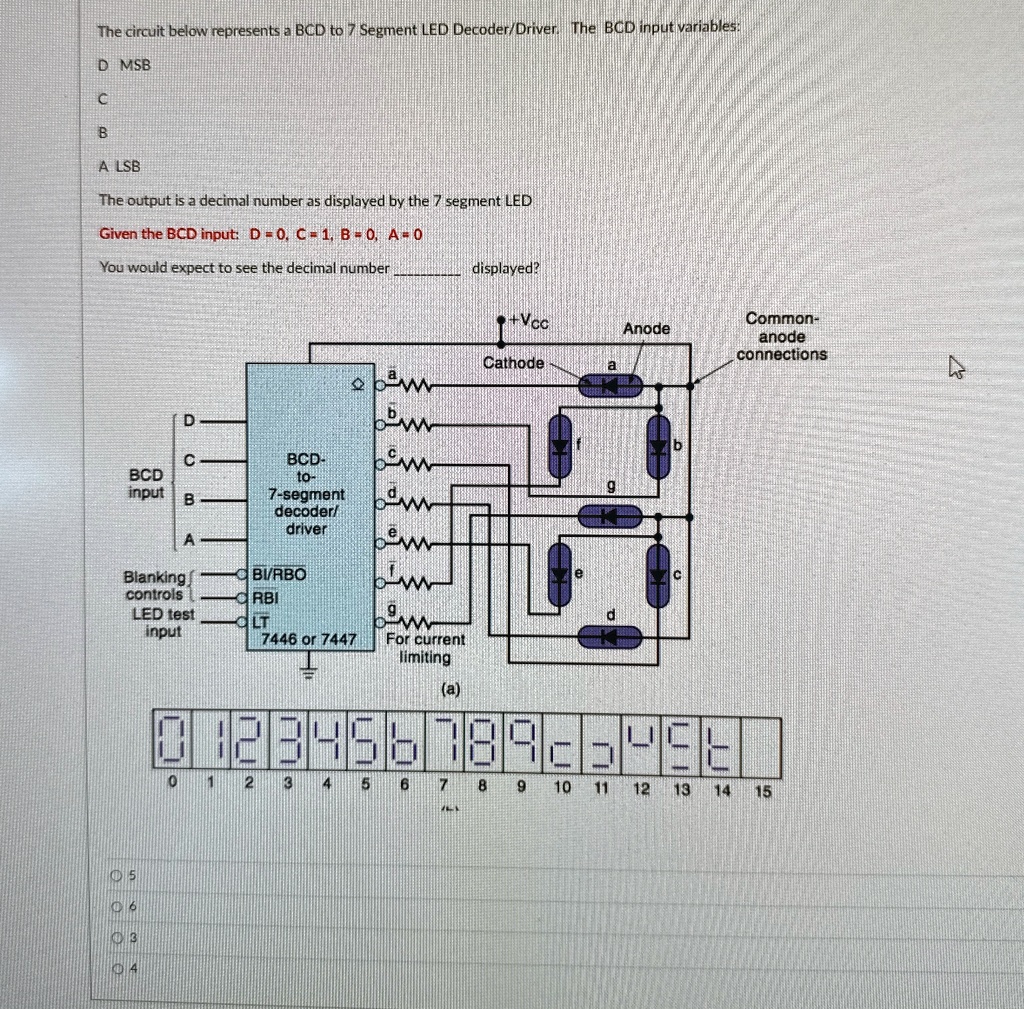

The circuit below represents a BCD to 7 Segment LED Decoder/Driver. The BCD input variables:
D MSB
C
B
A LSB
The output is a decimal number as displayed by the 7 segment LED
Given the BCD input: D=0, C=1, B=0, A=0
You would expect to see the decimal number ______ displayed?
