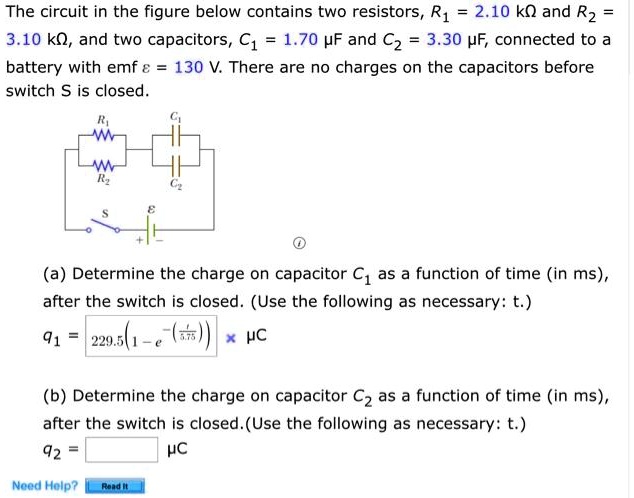

The circuit in the figure below contains two resistors, R1 = 2.10 kΩ and R2 = 3.10 kΩ, and two capacitors, C1 = 1.70 μF and C2 = 3.30 μF, connected to a battery with emf ε = 130 V. There are no charges on the capacitors before switch S is closed.
(a) Determine the charge on capacitor C1 as a function of time (in ms), after the switch is closed. (Use the following as necessary: t.)
(b) Determine the charge on capacitor C2 as a function of time (in ms), after the switch is closed. (Use the following as necessary: t.)
