The design of the gear-and-shaft system shown requires that steel shafts of the same diameter be

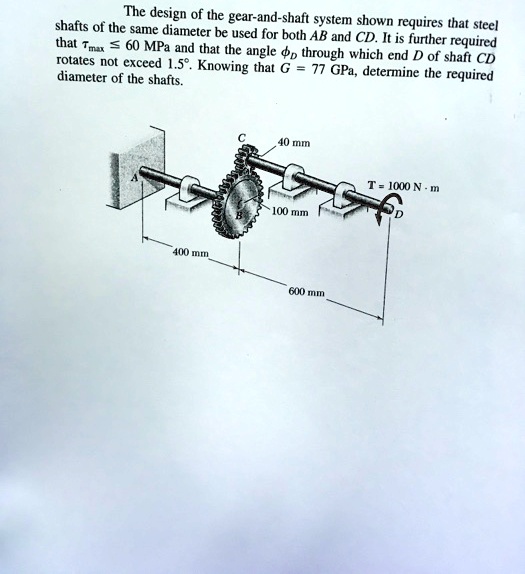

Name: The design of the gear-and-shaft system shown requires that steel shafts of the same diameter be used for both AB and CD. It is further required that ?max ? 60 MPa and that the angle ?D through which end D of shaft CD rotates not exceed 1.5°. Knowing that G = 77 GPa, determine the required diameter of the shafts.
Uploaded: 2022-09-24T12:08:34-08:00
Duration: 3 min 15 s
Channel: Sri K
Description: The design of the gear-and-shaft system shown requires that steel shafts of the same diameter be used for both AB and CD. It is further required that ?max ? 60 MPa and that the angle ?D through which end D of shaft CD rotates not exceed 1.5°. Knowing that G = 77 GPa, determine the required diameter of the shafts.

Question

David Morabito · Accepted Answer

First, we need to calculate the shear stress (τ) in the shafts AB and CD. The shear stress is gi
