Question

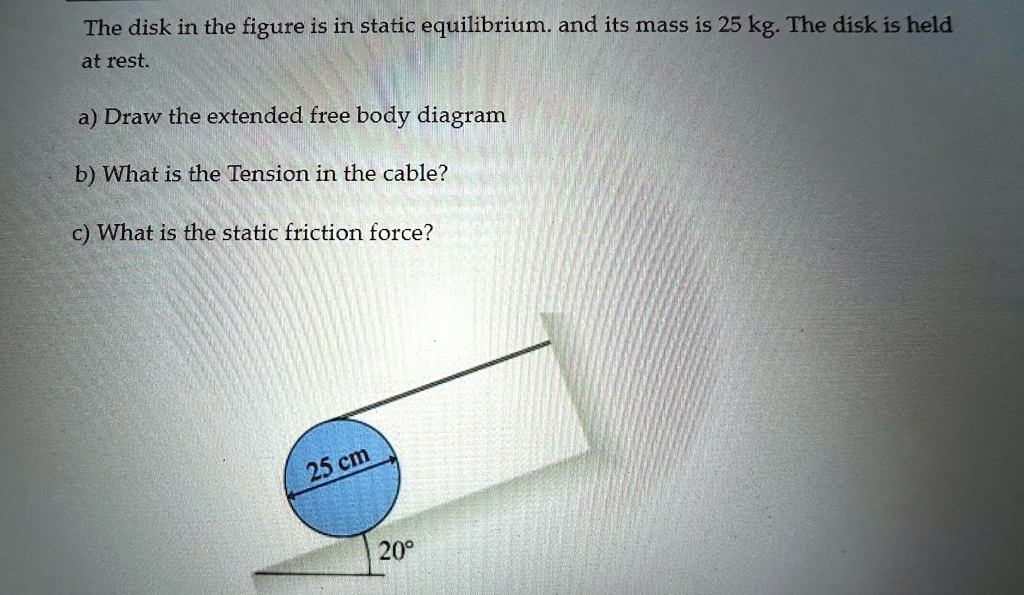

The disk in the figure is in static equilibrium. and its mass is 25 kg. The disk is held at rest. a) Draw the extended free body diagram b) What is the Tension in the cable? c) What is the static friction force?

          The disk in the figure is in static equilibrium. and its mass is 25 kg. The disk is held at rest.
a) Draw the extended free body diagram
b) What is the Tension in the cable?
c) What is the static friction force?

Added by Purificaci-N R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Kratika Bhadauria

09/08/2023

Step 1

The forces acting on the disk are the tension in the cable, the weight of the disk (mg), and the static friction force. Show more…
