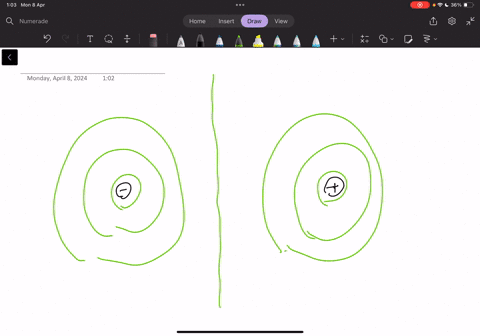

the drawing shows a set of equipotential surfaces in a cross section the grid lines are 2 cm
Added by Michael P.
Step 1
Let's think step by step. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

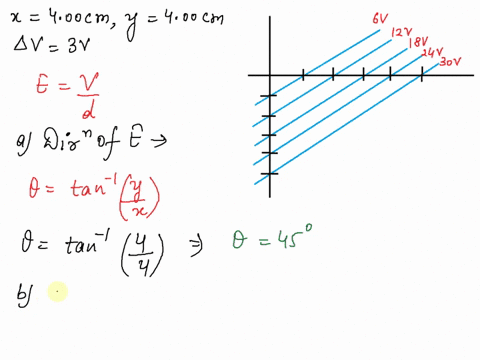

In the diagram below, each unit on the horizontal axis is 4.00 cm and each unit on the vertical axis is 4.00 cm. The equipotential lines in a region of uniform electric field are indicated by the blue lines. (Note that the diagram is not drawn to scale.) (a) What is the direction of the electric field? (b) Determine the magnitude of the electric field in this region. V/m (c) Determine the shortest distance for which the change in potential is 3 V: mm
Madhur L.
Shu N.
Figure 18.42 shows a set of electric-field lines for a particular distribution of charges. Use these lines to draw a series of equipotem. Limit yourself to the plane of the paper.
