The electric field due to a short dipole antenna located in free space is 10 Find: a. Hs b. The average power crossing the surface r-2, 0 < θ < π/6,0 p < π
Added by Sirisha
Step 1
The magnetic field strength (Hs) can be found using the relation between the electric field (E) and the magnetic field in free space, which is given by Hs = E/Z, where Z is the impedance of free space. The impedance of free space is a constant, approximately 377 Show more…
Show all steps
Your feedback will help us improve your experience
Kenny Mesadieu and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An EM wave radiates outwards from a dipole antenna, with $E_{0}$ as the amplitude of its electrie field vector, The electric field $E_{0}$ which transports significant energy from the source falls off as INCERT Exemplar] (a) $\frac{1}{r^{3}}$ (b) $\frac{1}{r^{2}}$ (c) $\frac{1}{r}$ [d) remains constant
Electromagnetic Waves
Round 1

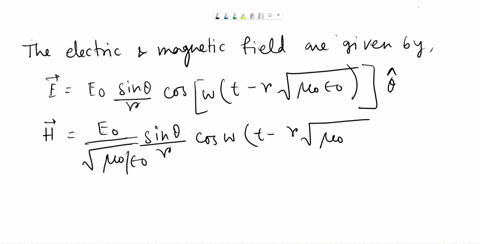

Problem 4.4 The electric and magnetic field intensities in the radiation field of an antenna located at the origin are given in spherical coordinates by: Find: (a) the instantaneous Poynting vector; (b) the instantaneous power radiated by the antenna by evaluating the surface integral of the instantaneous Poynting vector over a spherical surface of radius r centered at the antenna and enclosing the antenna; and (c) the time-average power radiated by the antenna.
Adi S.
Suppose a 35-kW radio station emits EM waves uniformly in all directions. (a) How much energy per second crosses a area 1.0 km from the transmitting antenna? (b) What is the rms magnitude of the $\vec E$ field at this point, assuming the station is operating at full power? What is the rms volt- age induced in a 1.0-m-long vertical car antenna (c) 1.0 km away, (d) 50 km away?
