v=4 m/s t=0s D(x, t) Part 1 2 4 6 8 10 12 14 16 18 x[m] Using the text and the blue line, label the wavelength on the snapshot graph starting from the peak at x = 2 m and draw a straight line to the right of the appropriate length. Place the point of the text at the centre of the blue line. D(x, 0) Text: 2 4 6 8 10 12 14 16 18 20 x[m] Blue Line:

          v=4 m/s
t=0s
D(x, t)
Part 1
2 4 6 8 10 12 14 16 18
x[m]

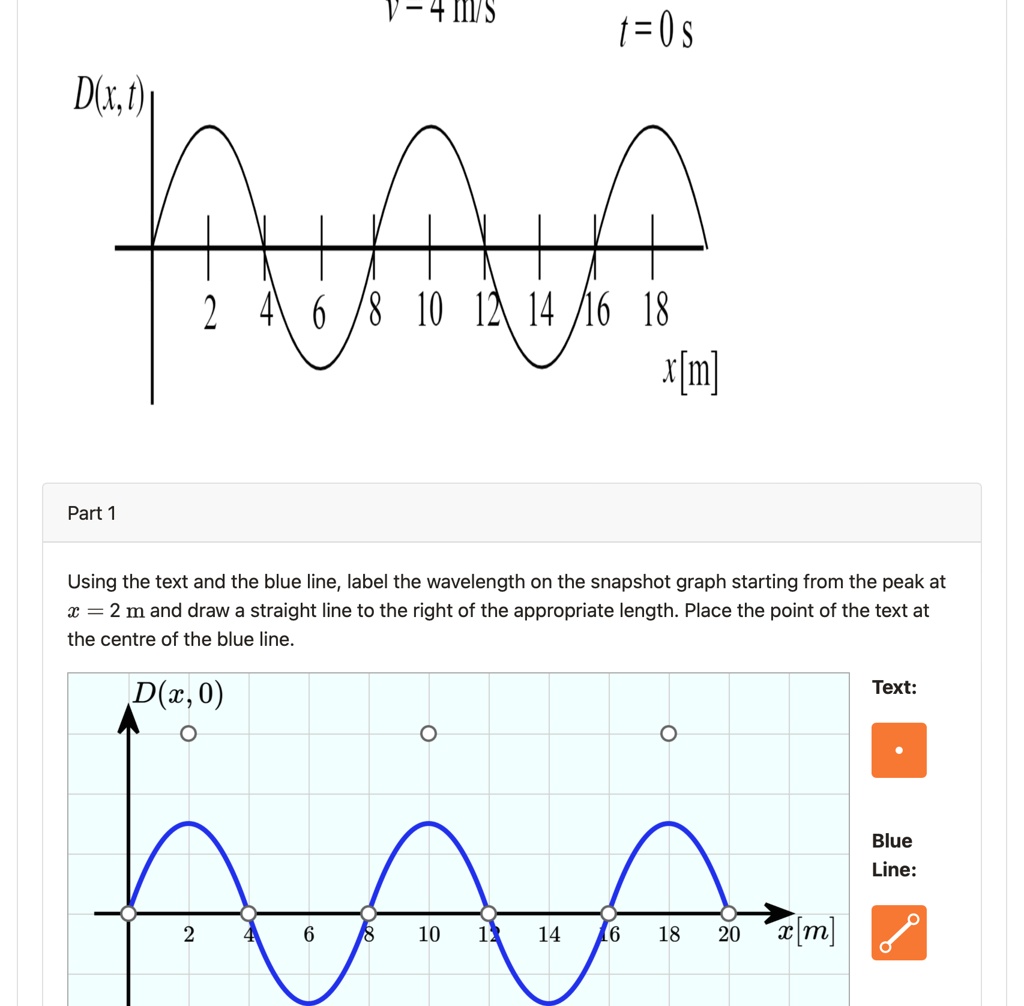

Using the text and the blue line, label the wavelength on the snapshot graph starting from the peak at
x = 2 m and draw a straight line to the right of the appropriate length. Place the point of the text at
the centre of the blue line.
D(x, 0)
Text:
2 4 6 8 10 12 14 16 18 20
x[m]
Blue
Line:

v=4 m/s
t=0s
D(x, t)
Part 1
2 4 6 8 10 12 14 16 18
x[m]
Using the text and the blue line, label the wavelength on the snapshot graph starting from the peak at
x = 2 m and draw a straight line to the right of the appropriate length. Place the point of the text at
the centre of the blue line.
D(x, 0)
Text:
2 4 6 8 10 12 14 16 18 20
x[m]
Blue
Line:

Added by Nerea B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Vishal Gupta

02/05/2024

Step 1

Draw a straight line to the right of the appropriate length. Place the point of the text at the center of the blue line. Show more…

Show all steps

Thanks for your feedback!

The figure below shows a snapshot graph of a sinusoidal travelling wave moving to the right at 4m/s at t=0s. Part 1 Using the text and the blue line, label the wavelength on the snapshot graph starting from the peak at x=2m and draw a straight line to the right of the appropriate length. Place the point of the text at the centre of the blue line. Part 2, what period should this travelling wave have? Please answer part 1 and 2 of this question! -4111/S t=O s D(x. 10 14 /16 18 x[m] Part1 Using the text and the blue line, label the wavelength on the snapshot graph starting from the peak at =2 m and draw a straight line to the right of the appropriate length.Place the point of the text at the centre of the blue line Text: Blue Line: 6 10 14 6 18 20 x|m
