Question

The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure. 12.0 ? 4.00 ? a • 5.00 ? • b 6.00 ? 8.00 ? (a) What is the equivalent resistance (in ?) of the entire network between points a and b? ? (b) A battery with a potential difference of 56 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor? 12.0 ? A 6.00 ? A 5.00 ? A 4.00 ? A 8.00 ? A

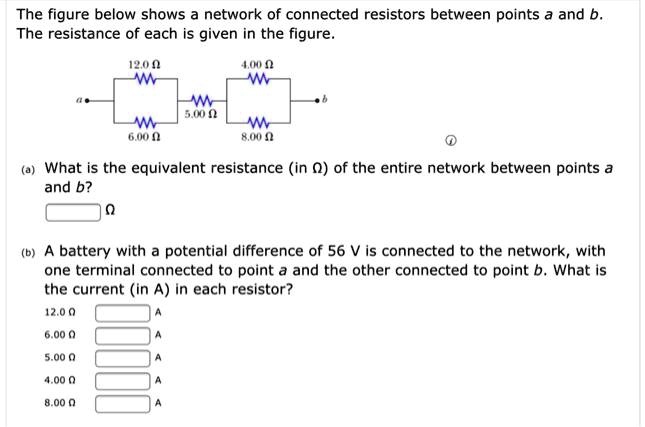

          The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure.
12.0 ?
4.00 ?
a •
5.00 ?
• b
6.00 ?
8.00 ?
(a) What is the equivalent resistance (in ?) of the entire network between points a and b?
?
(b) A battery with a potential difference of 56 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor?
12.0 ?
A
6.00 ?
A
5.00 ?
A
4.00 ?
A
8.00 ?
A

Show more…

The figure below shows a network of connected resistors between points a and b. The resistance of each is given in the figure.
12.0 ?
4.00 ?
a •
5.00 ?
• b
6.00 ?
8.00 ?
(a) What is the equivalent resistance (in ?) of the entire network between points a and b?
?
(b) A battery with a potential difference of 56 V is connected to the network, with one terminal connected to point a and the other connected to point b. What is the current (in A) in each resistor?
12.0 ?
A
6.00 ?
A
5.00 ?
A
4.00 ?
A
8.00 ?
A

Added by Gregory W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Urvashi Arora

02/12/2022

Step 1

Given resistances: - R1 = 12 Ω - R2 = 6 Ω - R3 = 8 Ω - R4 = 5 Ω Using the formula for resistors in parallel: 1/R_parallel = 1/R1 + 1/R2 1/R_parallel = 1/12 + 1/6 1/R_parallel = 1/4 R_parallel = 4 Ω Now, combining R_parallel with R3 in series: R_total = Show more…
