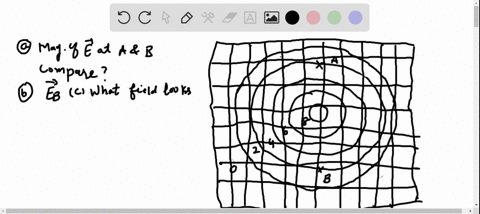

The figure below shows several equipotential lines each labeled by its potential in volts. The distance between the lines of the square grid represents 1.50 cm. 0 2 4 6 8 A B (a) Is the magnitude of the field bigger at A or at B? EA > EB EA < EB Why? (b) What is E at B? N/C --Direction--

          The figure below shows several equipotential lines each labeled by its potential in volts. The distance between the lines of the square grid represents 1.50 cm.
0 2 4 6 8 A B
(a) Is the magnitude of the field bigger at A or at B?
EA > EB
EA < EB
Why?
(b) What is E at B?
N/C
--Direction--

The figure below shows several equipotential lines each labeled by its potential in volts. The distance between the lines of the square grid represents 1.50 cm.
0 2 4 6 8 A B
(a) Is the magnitude of the field bigger at A or at B?
EA > EB
EA < EB
Why?
(b) What is E at B?
N/C
–Direction–

Added by Gina G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Kshipra R

02/23/2022

Step 1

- The electric field (\( \vec{E} \)) is related to the equipotential lines by the equation \( \vec{E} = -\nabla V \), where \( V \) is the electric potential. - The electric field is always perpendicular to the equipotential lines and points in the direction of Show more…
