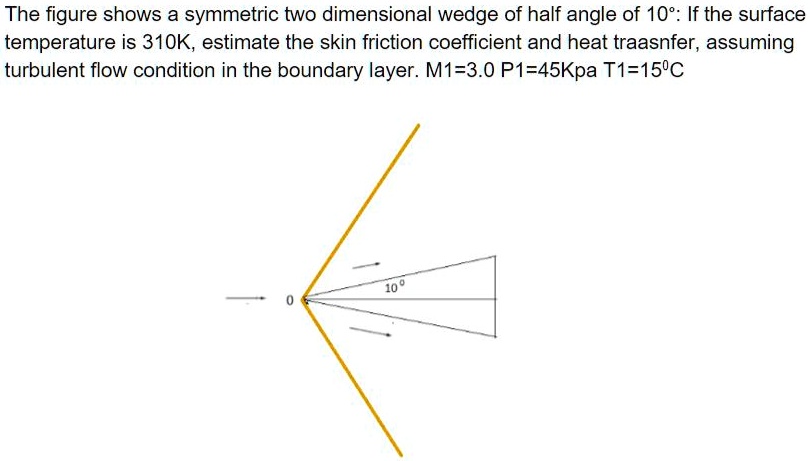

The figure shows a symmetric two dimensional wedge of half angle of 10°: If the surface temperature is 310K, estimate the skin friction coefficient and heat traasnfer, assuming turbulent flow condition in the boundary layer. M1=3.0 P1=45Kpa T1=15°C
