Question

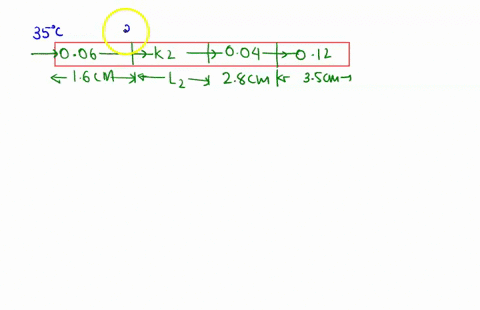

The Figure to the right shows (in cross section) a wall consisting of four layers, with thermal conductivities k1 = 0.060 W/m•K, k3 = 0.040 W/m•K, and k4 = 0.12 W/m •K (k2 is not known). The layer thicknesses are L1 = 1.5 cm, L3 = 2.8 cm, and L4 = 3.5 cm (Lz is not known). The known temperatures are T1 = 30°C, Ti2 = 25°C, and T4 = -10°C. Energy transfer through the wall is steady. What is interface temperature T34?

Name: the figure to the right shows in cross section a wall consisting of four layers with thermal conductivities k1 0060 wmk k3 0040 wmk and k4 012 wm k k2 is not known the layer thicknesses are l1 15 cm l
Uploaded: 2024-11-18T17:11:40-08:00
Duration: 2 min 42 s
Channel: Andreas Papavassiliou
Description: the figure to the right shows in cross section a wall consisting of four layers with thermal conductivities k1 0060 wmk k3 0040 wmk and k4 012 wm k k2 is not known the layer thicknesses are l1 15 cm l

          The Figure to the right shows (in cross section) a wall consisting of four layers, with thermal conductivities k1 = 0.060 W/m•K, k3 = 0.040 W/m•K, and k4 = 0.12 W/m •K (k2 is not known). The layer thicknesses are L1 = 1.5 cm, L3 = 2.8 cm, and L4 = 3.5 cm (Lz is not known). The known temperatures are T1 = 30°C, Ti2 = 25°C, and T4 = -10°C. Energy transfer through the wall is steady. What is interface temperature T34?

Added by Lisa B.

Fundamentals of Physics

David Halliday, Robert Resnick 11th Edition

Chapter 18

Instant Answer

Solved by Expert Andreas Papavassiliou

11/18/2024

Step 1

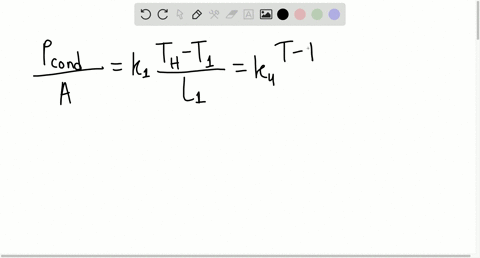

We have a wall with four layers, each with different thermal conductivities and thicknesses. We need to find the interface temperature \( T_{34} \) between layers 3 and 4. The energy transfer through the wall is steady, meaning the heat transfer rate is constant Show more…
